Model No: RCYZ

Permanent Pipeline Bullet Magnet​

● High Efficiency: NdFeB circular magnetic system ensures strong field and thorough iron removal

● Leak-proof: Fully sealed with flange connection, zero material leakage

● Energy Saving: Permanent magnet operation, zero power consumption

● Easy Maintenance: Quick-release door latch for cleaning without disassembly

● Compact Design: Small, lightweight, direct pipeline installation

● Wide Applicability: Food-grade stainless steel available for various industries

● Durable: Wear-resistant design, 10+ years service life

● Customizable: Supports size, material, and functional customization
Quantity :
Contact Now

 RCYZ Permanent Pipeline Bullet Magnet​Overview



The RCYA Series Permanent Magnetic Separator from Hengji Magnetoelectric Machinery Co., Ltd. delivers efficient pipeline iron removal using high-performance rare-earth magnetic materials. This innovative hump magnetic separator features a neodymium iron boron composite magnetic system optimized for confined spaces.

Specifically designed for extracting iron impurities from non-magnetic materials in closed pipelines, this compact hump magnet handles granular and small lump materials with continuous operation capability. The system provides reliable purification across cement, chemical, plastic, coal, refractory, construction, and food processing industries.

This sustainable solution combines robust performance with minimal space requirements, making it ideal for various industrial applications where efficient iron removal is critical for product quality and equipment protection.

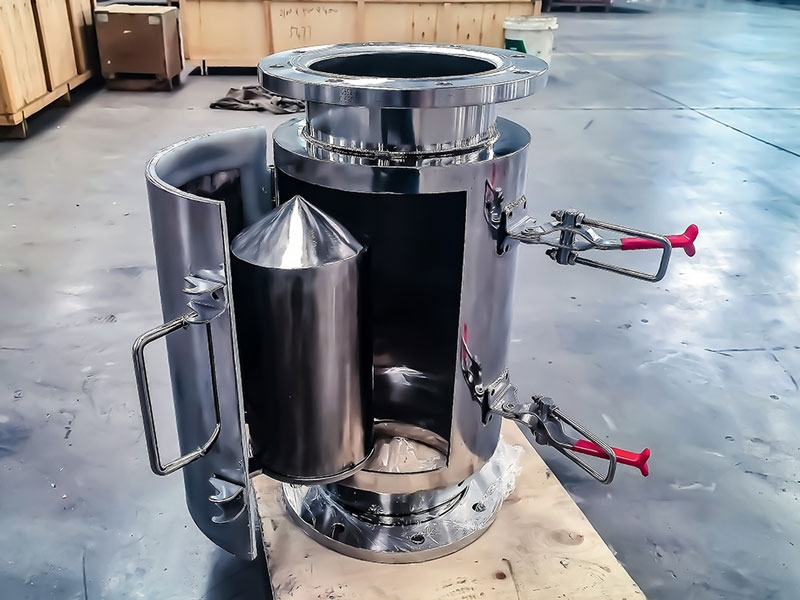

 RCYA Hump Magnet Magnetic Separator Overview


RCYZ Permanent Pipeline Bullet Magnet Specifications & Features

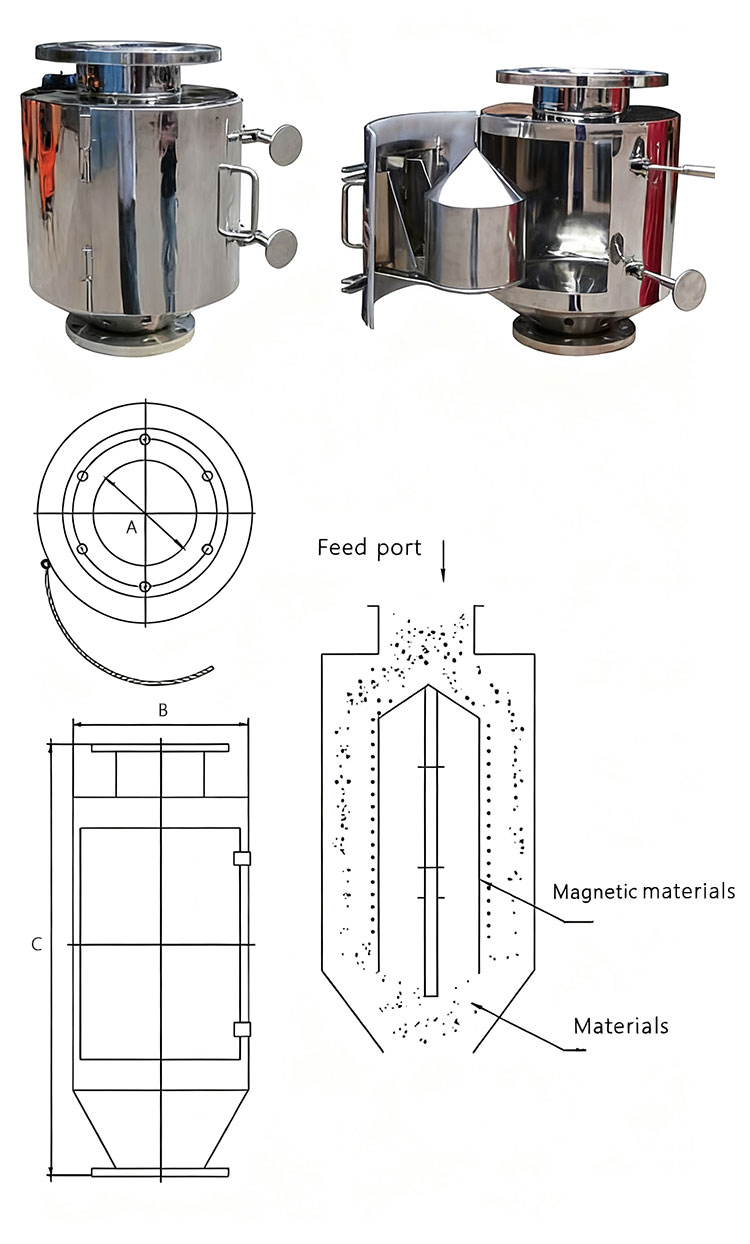

RCYZ Permanent Pipeline Bullet Magnet Schematic Diagram


High-Efficiency Separation

Utilizing NdFeB circular magnetic circuits, this bullet magnet system delivers strong magnetic field intensity, effectively removing ferrous impurities ranging from 0.1-5mm in powdered materials with focused precision.

Complete Sealing Performance

The fully enclosed bullet shaped magnet design with flange connections and soft gaskets ensures zero material leakage, meeting stringent cleanliness requirements for sensitive production environments.

Energy Efficiency

Pure permanent magnetic operation requires no electrical power, achieving zero energy consumption while operating without noise pollution. This bullet magnet system offers sustainable performance.

Maintenance-Friendly Design

Quick-release door latch mechanism allows iron cleaning without equipment disassembly, significantly reducing maintenance time for this bullet shaped magnet system.

Compact Construction

The space-saving bullet magnet design features small volume and light weight, enabling direct integration into existing pipeline systems without additional installation space.

Durability and Reliability

The magnetic system offers service life exceeding 10 years, while specially designed wear-resistant liners ensure long-term continuous operation of this bullet shaped magnet in demanding conditions.


 RCYZ Permanent Pipeline Bullet MagnetParameters

Model

Applicable Capacity (T/h)

Magnetic Field Intensity (GS)

Max. Feed Particle Size (＜mm)

Overall Dimensions (mm)

ABC

RCYZ-5

5

2000 - 16000

3.0

219

300

600

RCYZ-10

10

2000 - 16000

3.0

245

330

800

RCYZ-20

20

2000 - 16000

4.0

273

360

900

RCYZ-30

30

2000 - 16000

4.0

325

415

1000

RCYZ-50

50

2000 - 16000

5.0

377

470

1100

RCYZ-60

60

2000 - 16000

6.0

450

540

1300

RCYZ-100

100

2000 - 16000

8.0

530

630

1500

→ Click here to get RCYZ Permanent Pipeline Bullet Magnet quotation

 RCYZ Permanent Pipeline Bullet Magnet Key Application Scenarios

Food Industry

This bullet magnet ensures food safety by removing iron contaminants from flour, starch, and sugar powder, meeting strict hygiene standards in food processing applications.

Chemical Processing

The bullet shaped magnet effectively separates ferrous impurities from plastic pellets, fertilizers, and various chemical products, maintaining product purity in manufacturing processes.

Building Materials

Providing effective iron removal for cement, quartz sand, and ceramic powder, this bullet magnet ensures quality in construction material production while protecting processing equipment.

Pharmaceutical Sector

Meeting GMP requirements, the bullet shaped magnet eliminates iron contaminants from pharmaceutical intermediates and active ingredients, ensuring medication safety and quality control.

Powder Metallurgy

Enhancing purity levels of metal powders and magnetic materials, this bullet magnet supports quality-sensitive applications in advanced manufacturing processes.

Feed Processing

Protecting feed quality, the bullet shaped magnet removes iron contaminants from animal feed ingredients, ensuring nutritional safety in livestock production.

 → Click here  for more application information

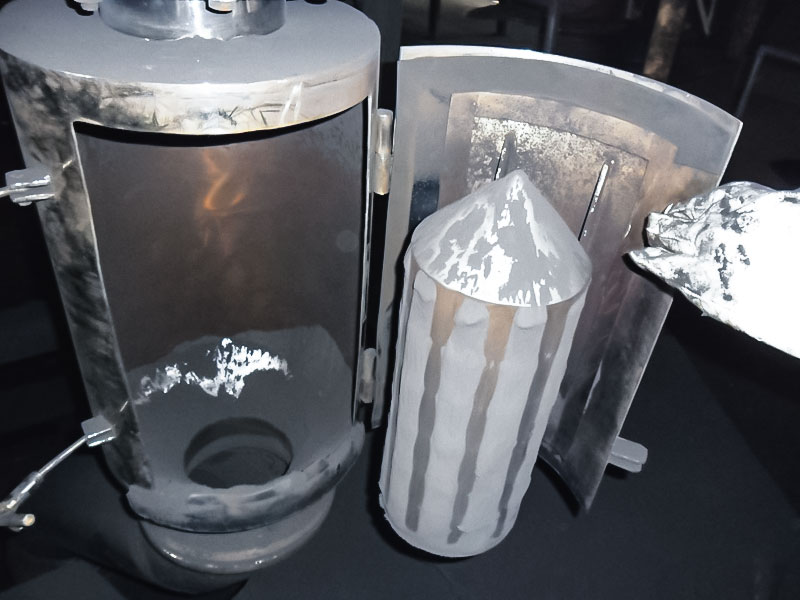

RCYZ Permanent Pipeline Bullet Magnet Key Application Scenarios

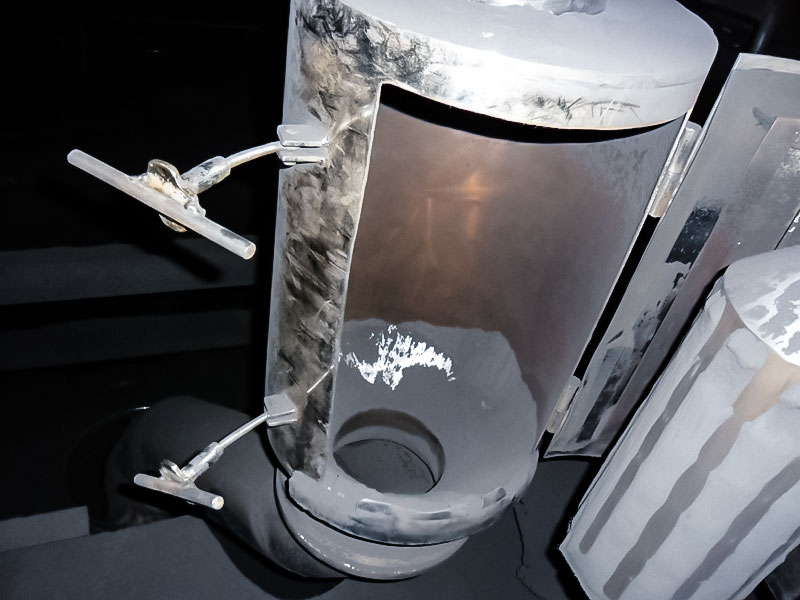

RCYZ Permanent Pipeline Bullet Magnet Key Application Scenarios

 RCYZ Permanent Pipeline Bullet Magnet Operation & Maintenance Guide




Installation Requirements

Connect the bullet magnet directly into material conveying pipelines using flange connections, ensuring correct inlet/outlet orientation. Install soft gaskets between flanges to prevent material leakage. Maintain adequate operational space around the bullet shaped magnet for maintenance and cleaning activities.

Operating Procedures

Inspect sealing integrity and flange tightness before operating the bullet magnet. Monitor separation performance regularly and adjust cleaning frequency based on iron content. Clean adsorbed iron promptly during shutdown periods to maintain the bullet shaped magnet's magnetic efficiency.

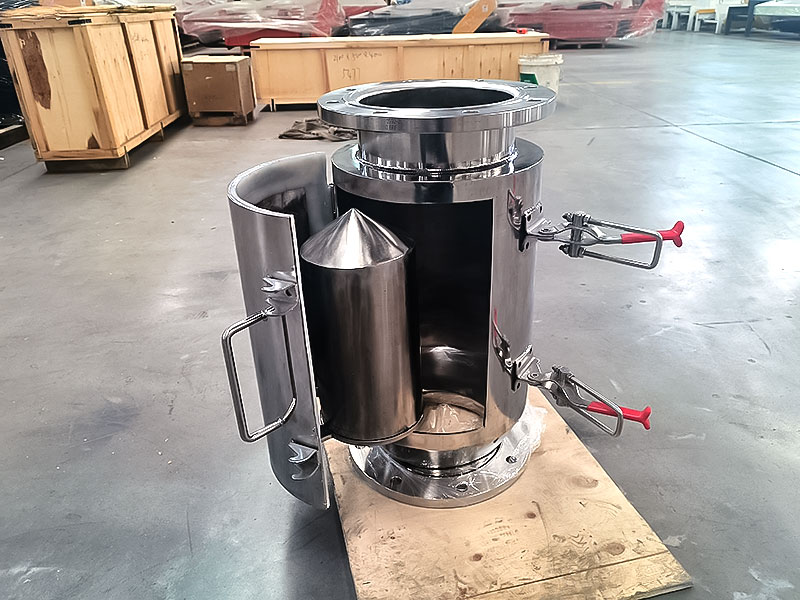

          RCYZ Permanent Pipeline Bullet Magnet Operation & Maintenance Guide

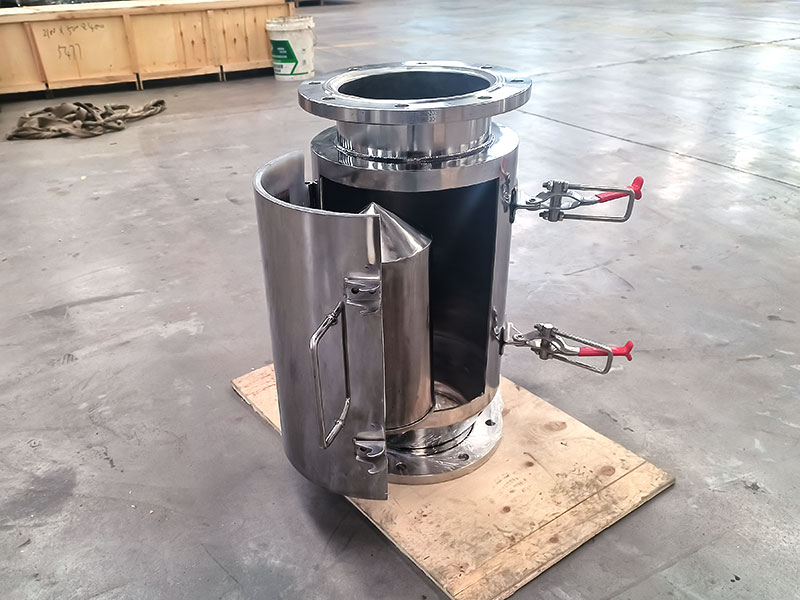

 RCYZ Permanent Pipeline Bullet Magnet Operation & Maintenance Guide

Maintenance Schedule

Perform complete iron cleaning after each operational cycle of the bullet magnet. Conduct weekly inspection of sealing conditions with timely replacement of worn components. Monthly checking of flange connection tightness. Quarterly examination of the bullet shaped magnet's magnetic system surface wear.

Safety Precautions

Maintain material temperature below 70°C (select high-temperature models for elevated temperatures). Use dedicated tools for iron cleaning to prevent damage to the bullet magnet system. Never perform maintenance during equipment operation. Regularly check equipment fastening to prevent vibration-induced loosening of the bullet shaped magnet components.



RCYZ Permanent Pipeline Bullet Magnet Customized Design

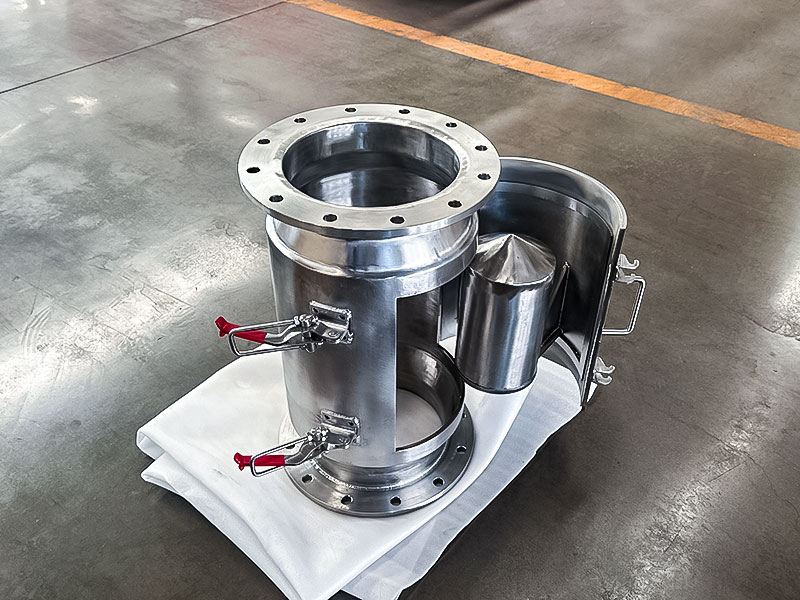

RCYA Hump Magnet Magnetic Separator Customized Design

Dimensional Customization

Tailored equipment sizes based on customer pipeline diameters (DN100-DN500), ensuring perfect fit for both bullet magnet and bullet shaped magnet installations.

Material Adaptations

Food-grade stainless steel (304/316L) for food and pharmaceutical applications. Custom wear-resistant liners for high-abrasion material environments, enhancing durability of the bullet shaped magnet systems.

Structural Modifications

Quick-open cleaning door design for frequent maintenance requirements of the bullet magnet. Observation window installation for real-time monitoring. Anti-clogging configurations for materials prone to agglomeration.

Functional Enhancements

Automatic cleaning attachments for unmanned operation of bullet shaped magnet systems. Integrated metal detection for intelligent process control. Pressure balance systems for negative pressure conveying environments.

Special Environment Versions

Explosion-proof designs for hazardous locations. Corrosion-resistant models for acidic/alkaline environments. High-temperature versions withstand material temperatures up to 150℃ for the bullet magnet.

The RCYZ series provides professional iron removal solutions with exceptional sealing performance and efficient separation capabilities, particularly suited for industries with strict cleanliness requirements.
