Eddy Current Magnetic Separator
● Non-Contact Separation (50-2880 r/min AC Field)
● Multi-Metal Compatible : Cu/Al/SS; E-Waste/ASR
● Auto Belt Alignment (10–15mm On-Site Adjust)
● Near-Zero Maintenance : Biweekly Lubrication Only
● Low Energy Use: Drum ≤7.5kW | Belt ≤1.5kW
● Stable Operation : Patented Eccentric Design

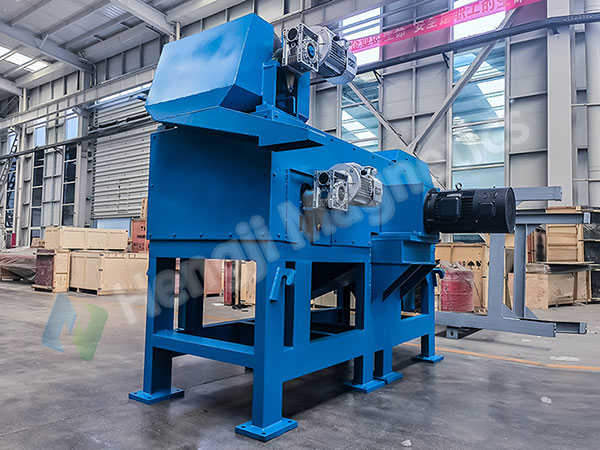

HECS Eddy Current Magnetic Separator Overview
Our advanced Eddy Current Magnetic Separator (ECS) series delivers industry-leading non-ferrous metal liberation. Engineered for extreme durability and precision, this robust eddy current metal separator excels in demanding recycling applications.
As a premier Eddy Current Non Ferrous Metal Separator, it efficiently recovers high-value metals like aluminum, copper, and brass from complex streams. The Eddy Current Magnetic Separator consistently achieves exceptional purity even with challenging materials.
This Eddy Current Metal Separator transforms waste into profit. Maximize recovery rates and minimize landfill costs with our Eddy Current Non Ferrous Metal Separator – your key to sustainable resource recovery and circular economy advancement.

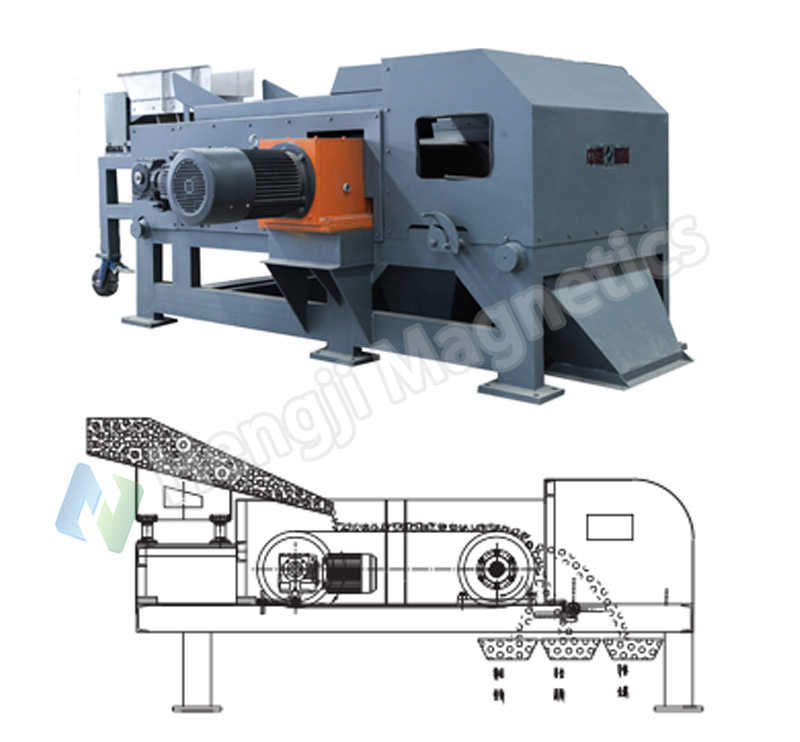

HECS Eddy Current Magnetic Separator Specifications & Features
- Technology: High-intensity rotating magnetic rotor generating powerful eddy currents - core of our Eddy Current Magnetic Separator.
- Target Materials: Aluminum, Copper, Brass, Zinc, Lead - efficiently separated by this Eddy Current Metal Separator.
- Separation Accuracy: ≥20mm particle recovery - precision benchmark for the Eddy Current Non Ferrous Metal Separator.
- Construction: Heavy-duty steel frame, abrasion-resistant belt, reinforced drive system - ensuring durability for your Eddy Current Metal Separator.
- Control: VFD-enabled rotor speed adjustment - essential for optimizing the Eddy Current Magnetic Separator.
- Safety: Integrated emergency stops + full guarding - standard on every Eddy Current Non Ferrous Metal Separator.
HECS Eddy Current Magnetic SeparatorParameters
Model | Adaptable Capacity (m³/h) | Diameter of Sorting Drum (mm) | Magnetic Drum Speed (r/min) | Sorting Drum Speed (r/min) | Overall Dimensions (Length×Width×Height, mm) | Power of Sorting Drum (kw) | Power of Belt Drive (kw) | Weight (kg) |
HECS-40 | ≤4 | 320 | 50 - 2800 | 60 - 150 | 2885×1500×1695 | 4 | 1.1 | 1200 |
HECS-60 | ≤6 | 320 | 50 - 2800 | 60 - 150 | 2885×1500×1695 | 5.5 | 1.1 | 1350 |
HECS-80 | ≤8 | 320 | 50 - 2800 | 60 - 150 | 2950×1700×1695 | 5.5 | 1.5 | 1500 |
HECS-100 | ≤10 | 400 | 50 - 2800 | 60 - 150 | 2950×2100×1695 | 7.5 | 1.5 | 1900 |
HECS-120 | ≤12 | 400 | 50 - 2800 | 60 - 150 | 2950×2400×1695 | 7.5 | 1.5 | 2100 |
→ Click here to get HECS Eddy Current Magnetic Separator quotation

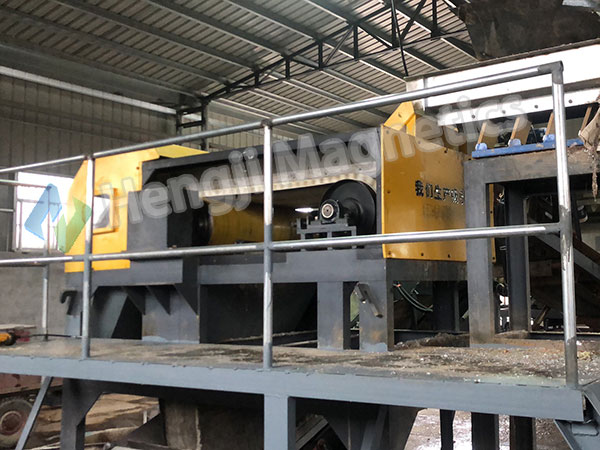

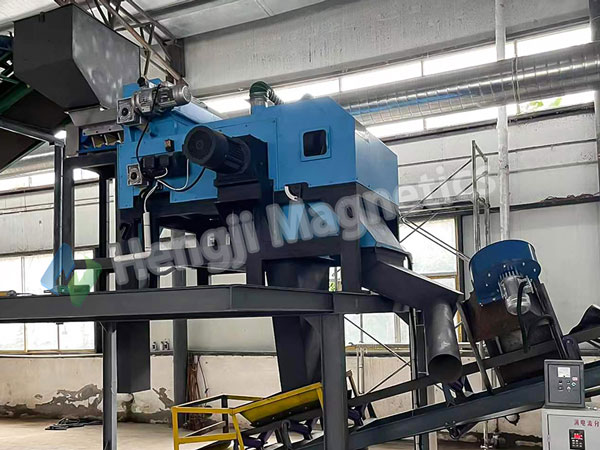

HECS Eddy Current Magnetic Separator Key Application Scenarios
Electronic Waste (WEEE):
Our Eddy Current Magnetic Separator recovers copper wiring/aluminum heatsinks from PCBs (e.g., refrigerator recycling). This Eddy Current Non Ferrous Metal Separator ensures high-purity output for downstream processing.Automotive Recycling (ASR):
Extract aluminum blocks/copper parts from shredder residue with ≥20mm precision. The Eddy Current Metal Separator significantly boosts metal yield from ELVs.
Industrial Waste:
Recover non-ferrous metals from boiler ash. Our Eddy Current Non Ferrous Metal Separator effectively purifies glass cullet by removing metal contaminants.Resource Recovery:
Separate aluminum nails in PVC window recycling. This Eddy Current Magnetic Separator also clears metal impurities from wood waste streams.
→ Click here for more application information
HECS Eddy Current Magnetic Separator Operation & Maintenance Guide
1. Installation & Commissioning
Secure your Eddy Current Metal Separator to level concrete (≤0.5° incline) using expansion bolts. Welded embedded plates are recommended for optimal stability.
Input: Connect AC 415V 3-phase + N (3×6mm² + 1×2.5mm²) to L1/L2/L3/N terminals in control cabinet.
Output: Wire to conveyor motor, Eddy Current Magnetic Separator rotor motor, and cooling fan.

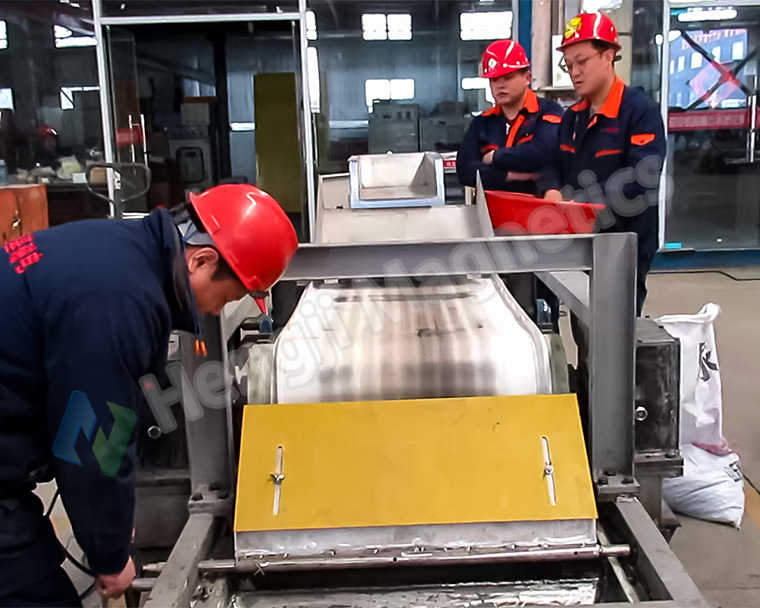

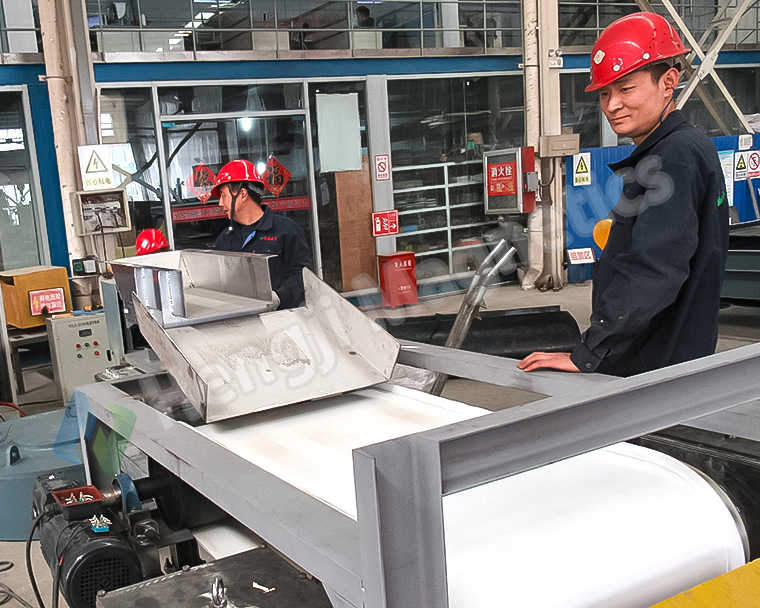

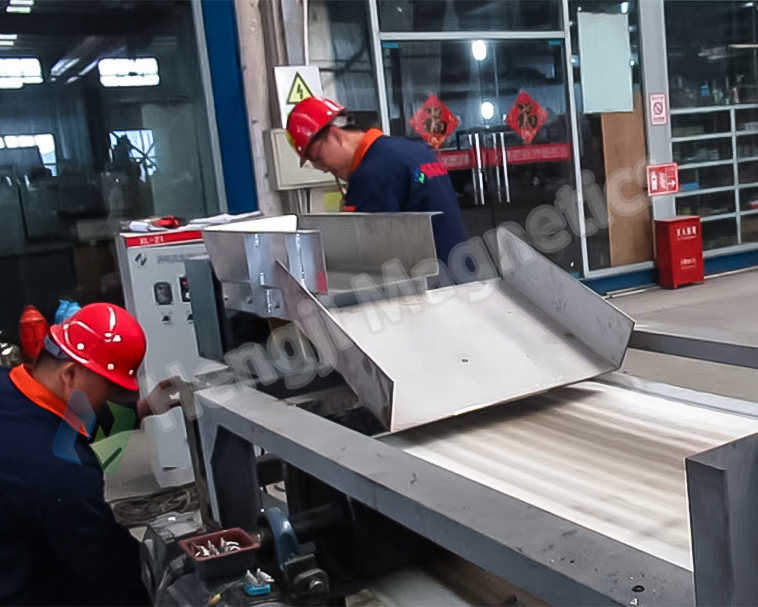

2. Operation
▪ Startup: Press START button → Check belt tracking. Adjust tail pulley bearings (Ref Doc 7) if misaligned.
▪ Optimization:
Belt Tension: Adjust until 10-15mm deflection under thumb pressure.
Splitter Plate: Test with sample material → Adjust angle based on ejection trajectory.
Rotor Speed: Rotate potentiometer clockwise to increase Eddy Current Magnetic Separator speed.
3. Maintenance
▪ Routine:
Lubricate bearings bi-weekly (NLGI 3 summer / 1-2 winter).
Clean metal fragments from belt surface to prevent eddy current burns.
▪ Storage: Protect rotor, motors & bearings from moisture when storing your Eddy Current Non Ferrous Metal Separator.
▪ WARNING: PROHIBITED – Feeding significant ferrous materials. Causes belt damage and destroys non-magnetic roller.

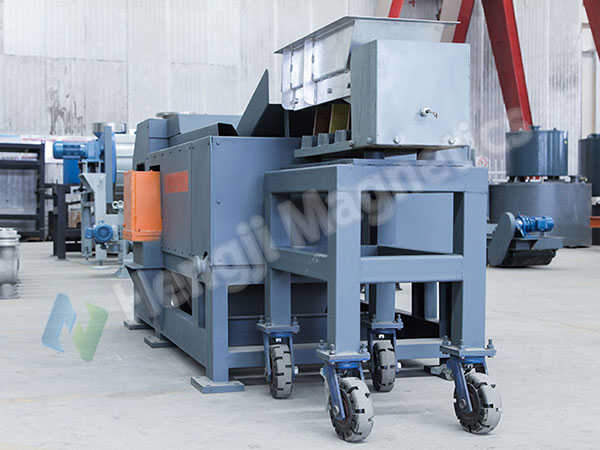

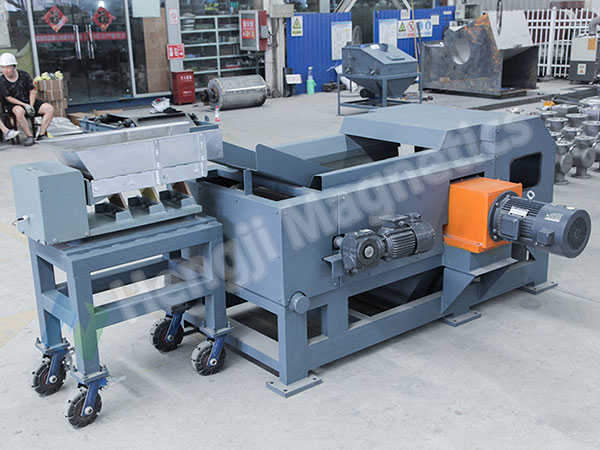

Hengji provides deeply customized eddy current magnetic separators tailored to material type, capacity, and operating conditions. Key customization aspects include:
Magnetic System: Adjustable strength (up to 5500 Gs) and speed (50–2880 rpm) for optimal separation of non-ferrous metals.
Mechanical Design: Multiple sizes of drums (320–1200 mm) and belts (400–2000 mm) supporting 1–50 t/h capacity.
Material Options: Anti-corrosion or wear-resistant upgrades for challenging environments.
Automation: PLC control with pre-set modes and IoT support for real-time monitoring.
Turnkey Solutions: Customized layouts for e-waste, auto shredding, and other applications.
Hengji’s eddy current metal separator ensures high recovery efficiency, durability, and seamless integration into your production line.
Services Available for HengJI Magnetic Separator Purchasers
Full Lifecycle Support Custom Design, Installation & Lifetime Maintenance.
Industry-Specific Solutions Hazardous & Sterile Applications, Metal Recovery.
Rapid Response 24/7 Consultation & 48-Hour Repairs.
Certification Support Training & Compliance Guidance.
