High Intensity Pipeline Filter Magnetic Separator

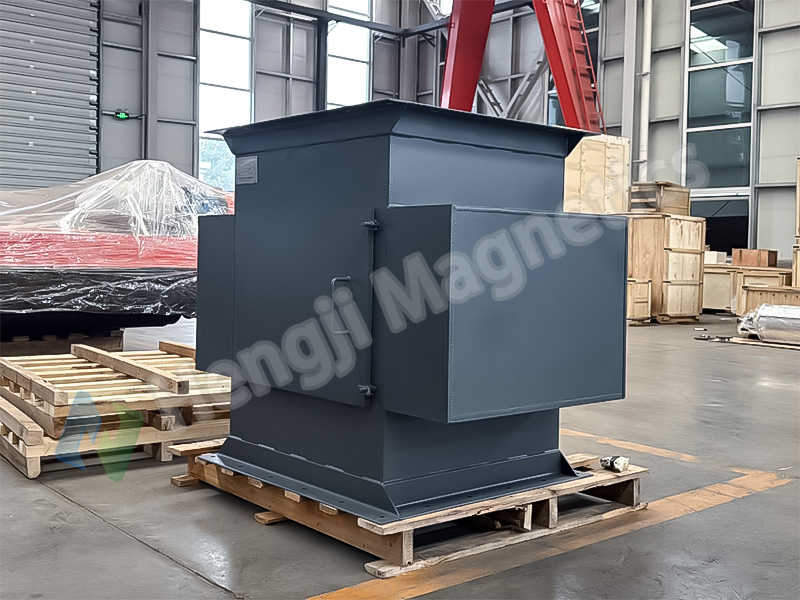

RCYF High Intensity Pipeline Filter Magnetic Separator Overview

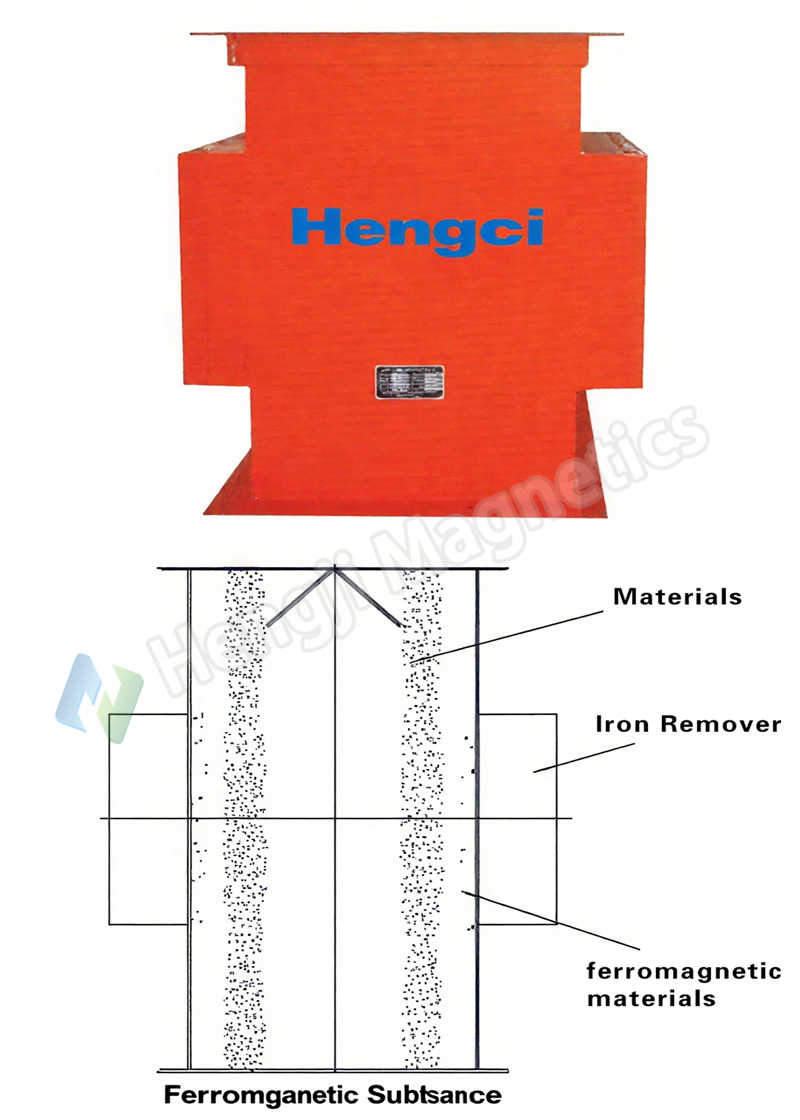

The RCYF Series Pipeline Permanent Magnetic Separator from Hengji Magnetoelectric Machinery provides a professional solution for efficient iron removal. This innovative separator utilizes high-performance neodymium iron boron magnets to generate a powerful magnetic field.
Designed for powdered, granular, and small lump materials, this dry high-intensity magnetic separator allows for vertical installation directly into conveying pipelines. This enables continuous, automatic iron removal during material handling.
With its compact structure, high efficiency, and zero energy consumption, the system is widely used in the cement, construction materials, chemical, food processing, and plastic industries.
RCYF High Intensity Pipeline Filter Magnetic Separator Specifications & Features
1.High Efficiency & Energy Saving
- This pipeline filter separator utilizes powerful rare earth magnets for effective iron removal. The dry high intensity magnetic separator operates with zero energy consumption, significantly reducing operational costs.
2. Space Optimization & Continuous Operation
Featuring a compact vertical design, this pipeline filter separator enables easy integration and uninterrupted processing. The system ensures smooth production flow without downtime.
3. Low Maintenance & Long Life
Requiring only periodic cleaning, this dry high intensity magnetic separator maintains over 90% magnetic strength after 10 years. The fully sealed design ensures reliable performance with minimal maintenance.
4. Safe Operation
With no moving parts, this pipeline filter separator operates silently and vibration-free, ensuring safety in various industrial environments.
RCYF High Intensity Pipeline Filter Magnetic SeparatorParameter
Model | Applicable Capacity (T/h) | Duct Dimensions (L×W×H, mm) | Permanent Magnet Dimensions (L×W×H, mm) | Flange Interface Dimensions (L×W, mm) | Installation Method | Weight (kg) |
RCYF-15 | 15 | 300×300×600 | 300×250×80 | 360×360 | Suitable for 90° vertical duct installation | 105 |
RCYF-30 | 30 | 400×400×700 | 400×300×85 | 460×460 | 195 | |
RCYF-50 | 50 | 500×500×800 | 500×400×85 | 600×600 | 310 | |
RCYF-100 | 100 | 600×600×1000 | 600×450×180 | 700×700 | 470 | |
RCYF-200 | 200 | 700×700×1200 | 700×500×210 | 840×840 | 680 | |
RCYF-300 | 300 | 800×800×1400 | 800×700×210 | 940×940 | 890 | |
RCYF-500 | 500 | 900×900×1500 | 900×800×250 | 1040×1040 | 1100 | |
RCYF-600 | 600 | 1000×1000×1600 | 1000×800×250 | 1140×1140 | 1310 | |
RCYF-800 | 800 | 1100×1100×1700 | 1100×900×250 | 1240×1240 | 1560 | |
RCYF-1000 | 1000 | 1200×1200×1800 | 1200×1000×300 | 1340×1340 | 1820 | |
RCYF-1500 | 1500 | 1300×1300×2000 | 1300×1100×300 | 1440×1440 | 2060 |
→ Click here to get RCYF High Intensity Pipeline Filter Magnetic Separator quotation
RCYF High Intensity Pipeline Filter Magnetic Separator Key Application Scenarios
Cement Industry
Construction Materials
Chemical Processing
Food Processing
Coal Industry
Refractory Materials
RCYF High Intensity Pipeline Filter Magnetic Separator Operation & Maintenance Guide
1.Installation Requirements
2. Operating Procedures
Normal Operation: Ferrous contaminants are automatically captured by strong magnetic force during material flow
Regular Cleaning:
- Shut down equipment and open inspection door
- Remove adsorbed iron contaminants using non-magnetic tools
- Close inspection door securely after cleaning completion
3.Maintenance Protocol
4. Safety Precautions
⚠️ Restricted: Personnel with cardiac pacemakers must maintain safe distance
⚠️ Precaution: Keep magnetic-sensitive devices (mobile phones, credit cards) away from operational areas
RCYF High Intensity Pipeline Filter Magnetic Separator
Performance Customization
Dimensional Adaptation
Material Options
▪ Standard: 304 stainless steel
▪ Corrosion-resistant: 316L stainless steel
▪ Wear-resistant: Ceramic-lined interior
Connection Systems
Special Applications
▪ Food-grade configurations
▪ Explosion-proof certifications
▪ High-temperature designs (up to 150°C)
The customization process includes technical consultation to final delivery, typically completed within 20-30 working days. Each pipeline filter separator is engineered for optimal performance in specific operational conditions.
