Rotary Drum Magnetic Separator and Wet Drum Magnetic Separator: Continuous Slurry Separation
In wet beneficiation of magnetic minerals such as magnetite, pyrrhotite, and roasted ore, the separation efficiency between magnetic minerals and non-magnetic gangue directly determines concentrate grade and metal recovery. Customers consistently ask: Can concentrate grade meet standards consistently? Can magnetic iron content in tailings be further reduced? Does the equipment clog or lose material easily, and does it require frequent maintenance? Can throughput meet production line requirements? The rotary drum magnetic separator and wet drum magnetic separator are designed to answer these exact concerns.
How Rotary Drum Magnetic Separator and Wet Drum Magnetic Separator Work

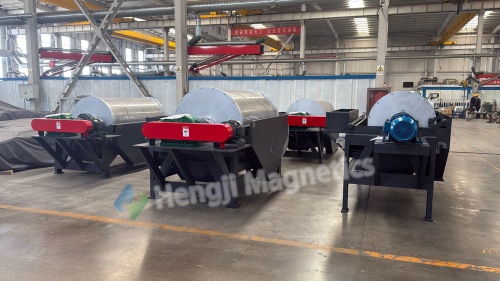

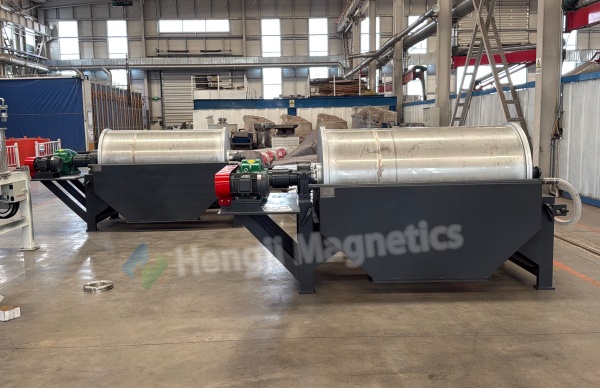

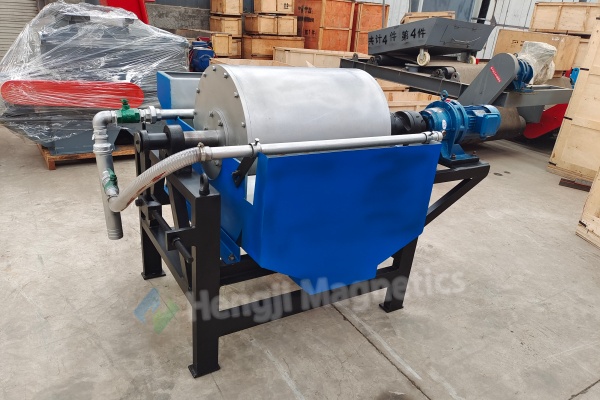

The rotary drum magnetic separator is suitable for wet magnetic separation of ferromagnetic materials such as magnetite, pyrrhotite, roasted ore, and ilmenite. It is also used for iron removal from coal, non-metallic minerals, and building materials, as well as magnetite heavy media recovery in coal preparation. The wet drum magnetic separator mainly consists of a permanent magnetic drum, adjustment mechanism, tank, gearbox, motor, feed box, concentrate box, and frame. Slurry enters the feed box through a flange, is initially diluted by the feed water pipe, and is washed to the lower part of the permanent magnetic drum by a spray pipe. The rotating drum separates the slurry into concentrate and tailings. The concentrate is rinsed into the concentrate box through the concentrate pipe. This is how the rotary drum magnetic separator delivers continuous separation.
Key Components of Wet Drum Magnetic Separator

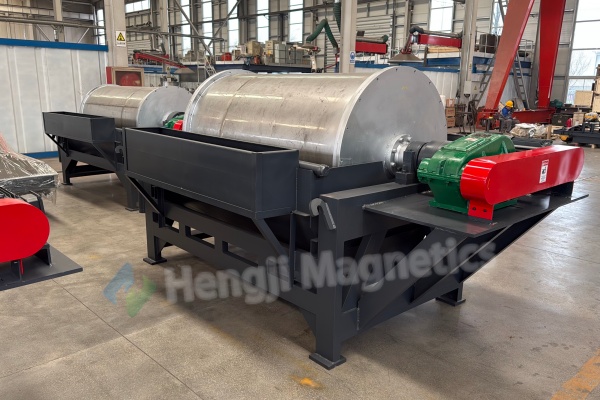

The permanent magnetic drum is the key component of the wet drum magnetic separator. It consists of a cylinder, permanent magnetic system, end covers, shaft, bearing housings, and bearings. The cylinder is rolled from stainless steel plate, supported on the shaft through end covers, bearing housings, and bearings. The distance between the cylinder and the magnetic system does not exceed 4 mm. Inside, a composite magnetic system made of high-performance strong magnetic materials delivers high field strength, deep penetration, and no demagnetization over years of use. The rotary drum magnetic separator offers a wide range of drum surface field strengths, customizable to user requirements. The shell is stainless steel, available with plain or rubber-lagged surfaces. Rubber lagging options include plain, diamond, and herringbone patterns to suit different materials.
The wet drum magnetic separator uses a rare earth composite magnetic system, bonded with high-strength adhesive and epoxy-potted, with the surface reinforced by stainless steel strapping to prevent detachment. End seals with gaskets and sealant prevent water ingress. The drum rubber is directly vulcanized rather than bonded, using high-wear rubber for long service life. The tank is specially designed to resist clogging and material loss. The semi-counter-current tank design ensures full slurry flow and more thorough separation. The feed box is designed to generate proper slurry flow, significantly improving magnetic mineral recovery. These features make the rotary drum magnetic separator a reliable choice for demanding wet separation duties.
Drive System and Magnetic Angle Adjustment
The drive system of the wet drum magnetic separator uses a cycloidal gearmotor, sprocket, chain, and drive shaft connected to the drum, ensuring smooth and reliable rotation. The magnetic angle adjustment device allows easy adjustment of the magnetic system angle to suit different separation requirements. This flexibility is a key advantage of the rotary drum magnetic separator.
Customer Case: Wet Drum Magnetic Separator in Iron Ore Plant

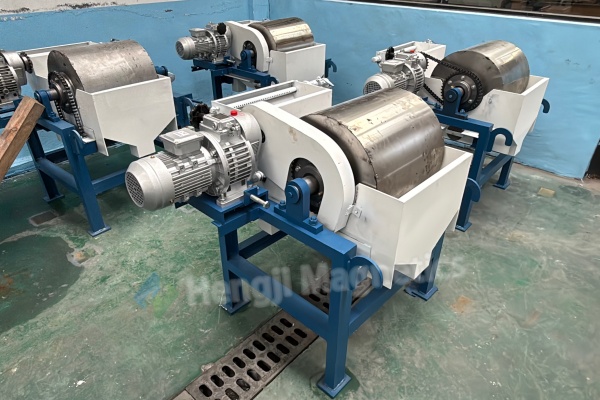

An iron ore concentrator processing magnetite faced fluctuating feed grades. The existing equipment delivered unsatisfactory separation, with high magnetic iron content in tailings and serious resource waste. After introducing the rotary drum magnetic separator, slurry entered the tank evenly after dilution. Under the strong magnetic field of the permanent drum, magnetic minerals were effectively attracted to the drum surface, carried out of the magnetic field, and rinsed into the concentrate box. Non-magnetic gangue flowed out through the tailings box.
After the upgrade, concentrate grade stabilized and improved. Magnetic iron content in tailings dropped significantly. The plant increased concentrate production by thousands of tons annually, achieving remarkable economic benefits. This case demonstrates the practical value of the wet drum magnetic separator in real-world production. The rotary drum magnetic separator delivered stable performance and flexible adjustment.
Advantages of Rotary Drum Magnetic Separator and Wet Drum Magnetic Separator
The rotary drum magnetic separator and wet drum magnetic separator offer several key advantages:
-
Simple structure and high throughput: The wet drum magnetic separator handles large volumes with ease.
-
Easy operation and maintenance: The rotary drum magnetic separator is designed for simple, low-maintenance operation.
-
Stable and maintenance-free magnetic field: The permanent magnetic system delivers long service life without demagnetization.
-
Compact and reliable: The wet drum magnetic separator is compact, easy to install, and reliable in operation.
-
Energy efficient: No power consumption for field generation—saving energy.
-
Clog-resistant tank design: The semi-counter-current tank prevents material loss and clogging.
-
Adjustable magnetic angle: The rotary drum magnetic separator adapts to different operating conditions.
These features make the wet drum magnetic separator and rotary drum magnetic separator ideal for magnetite beneficiation, heavy media recovery, non-metallic mineral iron removal, and building material purification.
From magnetite beneficiation to heavy media recovery, from non-metallic mineral iron removal to building material purification, the rotary drum magnetic separator and wet drum magnetic separator are solving real wet slurry separation challenges. The wet drum magnetic separator is widely used in iron ore processing, coal preparation, and non-metallic mineral processing.
The rotary drum magnetic separator helps improve concentrate grade and resource utilization. If you are struggling with unsatisfactory slurry separation, the rotary drum magnetic separator and wet drum magnetic separator deserve serious consideration. They deliver stable magnetic design, clog-resistant tank structure, and flexible magnetic adjustment—helping you improve concentrate grade and reduce tailings loss.
Conclusion: Choose Rotary Drum Magnetic Separator and Wet Drum Magnetic Separator
The rotary drum magnetic separator and wet drum magnetic separator provide reliable solutions for wet slurry separation in mineral processing. With their stable magnetic systems, high throughput, low maintenance, and energy-saving operation, they help concentrators improve concentrate grade and reduce tailings loss.
From magnetite to heavy media recovery, from non-metallic minerals to building materials, the rotary drum magnetic separator and wet drum magnetic separator are the equipment of choice for efficient wet separation. Contact us today for a free application review and find the right rotary drum magnetic separator or wet drum magnetic separator for your production line.
