Rotary Magnetic Separator: Achieving Efficient Mineral Purification with Rotating Magnetic System and Automatic Discharge

2026-07-30

In mining, mineral processing, and non‑metallic ore industries, efficiently separating valuable magnetic minerals while removing ferrous impurities and gangue is a core challenge. Conventional processes often face bottlenecks—insufficient field utilization, low separation precision, limited fine‑iron removal—failing to meet demands for high output, high grade, and low operating costs. The rotary magnetic separator designed as a magnetic ore separator addresses these challenges. Using a unique rotating magnetic assembly, it ensures full contact between material and magnetic rods as they move through the separation zone—ferrous impurities are firmly captured while non‑magnetic minerals pass through, achieving efficient, thorough separation. This rotary magnetic separator combines rotating magnetic design with automated iron discharge, significantly improving ore purification efficiency and concentrate grade, making it a core beneficiation tool for powder and granular ores.

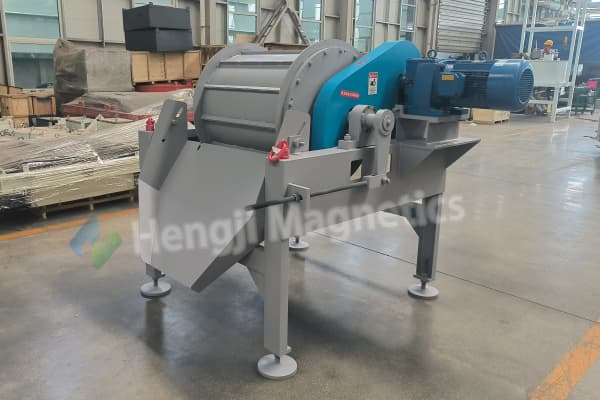

How the Rotary Magnetic Separator Improves Ore Purification

The design of this magnetic ore separator focuses on the core concerns of ore processors, delivering separation efficiency and economic returns through advanced technology.

Enhancing Concentrate Grade and Reducing Impurities

In processing strongly magnetic ores—magnetite, pyrrhotite, roasted ore—and in iron removal from non‑metallic minerals (quartz, feldspar, kaolin), the rotary magnetic separator uses a unique rotating magnetic assembly with precisely designed spacing to maximize field coverage, achieving layer‑by‑layer filtration for thorough, high‑efficiency iron removal. As material passes through the rotating magnetic rod zone, the rods continuously rotate—preventing material buildup and ensuring full contact between particles and rod surfaces. Ferrous impurities are instantly captured, while non‑magnetic minerals pass through. This design enables the magnetic ore separator to achieve "high discard, low loss" purification targets in fine‑grained ores—improving concentrate grade and reducing processing costs.

Automation and Operational Stability

What distinguishes the rotary magnetic separator from conventional separators is its fully automatic operation. The unit requires no manual intervention, with low mechanical failure rates. When magnetic rods reach saturation, a pneumatic cylinder or automatic rotation mechanism withdraws them from the magnetic field—captured iron falls by gravity and is discharged, while the rods automatically reset. This self‑cleaning mechanism ensures continuous, stable operation without frequent shutdowns, significantly improving line continuity and automation. The discharge interval can be programmed based on actual iron loading, flexibly adapting to different ore feed conditions.

Durability and Low Maintenance

The rotary magnetic separator is built for heavy‑duty, continuous operation in harsh environments. The magnetic rods use rare earth Neodymium magnets with long service life, zero energy consumption, and no contamination. Product‑contact parts are stainless steel—corrosion‑resistant, rust‑free, and non‑contaminating. The magnetic assembly and drive system are optimized for smooth, reliable operation. Daily maintenance is limited to checking cylinder bolts, air pressure, and cleaning dust—keeping operating costs low and procedures simple.

Adaptability to Ore Characteristics and Particle Size

The rotary magnetic separator allows adjustment of rod rotation speed and discharge interval to suit different iron content levels and particle sizes. For high‑iron feeds, shorter discharge intervals maintain high capture efficiency; for fine‑grained ores, speed adjustments ensure full contact with magnetic rods for improved separation. This flexibility allows the magnetic ore separator to handle variations in ore properties across different deposits while maintaining stable beneficiation performance.

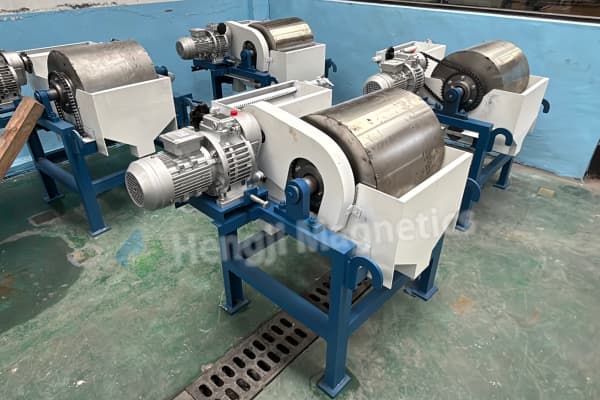

How the Rotary Magnetic Separator Improves Ore Purification 1

Installation Flexibility and Space Adaptability

The rotary magnetic separator has a compact, lightweight design. It can be floor‑mounted with simple grounding, or installed in‑line in existing powder conveying pipelines—no complex foundations, minimal footprint. Feed and discharge ports are designed for easy connection to upstream and downstream equipment, integrating seamlessly into existing beneficiation lines.

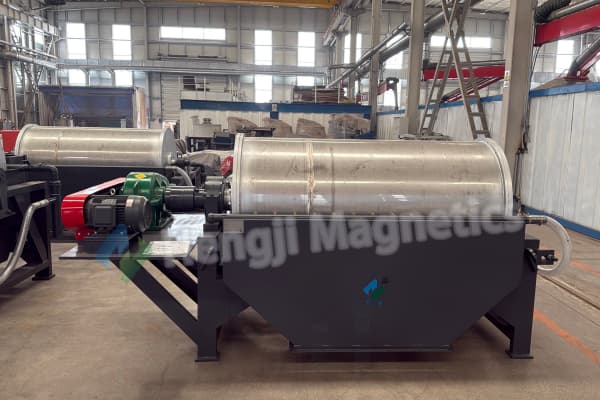

Applications of the Rotary Magnetic Separator

The rotary magnetic separator is widely used in ore processing applications:

Iron ore beneficiation: Upgrading magnetite, pyrrhotite, and roasted ores.
Non‑metallic mineral purification: Removing iron from quartz, feldspar, kaolin, and other industrial minerals.
Scavenging and cleaning: Recovering magnetic values from tailings or intermediate streams.
Small‑scale and pilot‑scale processing: Flexible, compact separation for test and development work.

Conclusion

The rotary magnetic separator designed as a magnetic ore separator is an essential tool for efficient ore purification. With rotating magnetic design, fully automatic discharge, rugged durability, and flexible adaptability, it helps concentrators improve grade, reduce impurities, increase efficiency, and save labor. For any operation committed to resource efficiency and cost‑effective beneficiation, a reliable rotary magnetic separator is the strategic choice—maximizing value from every ton of ore processed.
