Electromagnetic Separator Machine – Making Separation Techniques Magnetism Work for You

2026-08-05

If you are struggling with ferrous impurities affecting product purity in your powder or granular materials, what you truly need is equipment that can reliably apply separation techniques magnetism to your production line. At its core, separation techniques magnetism relies on the magnetic differences between minerals in a magnetic field: when material enters the separation zone, particles with different magnetic susceptibilities follow different paths under the combined action of magnetic force and mechanical forces (gravity, centrifugal force, etc.), thereby achieving separation. The electromagnetic separator machine is the engineered embodiment of these separation techniques magnetism, serving you through controllable electromagnetic excitation—turning an abstract principle into a continuously operating process on your production line.

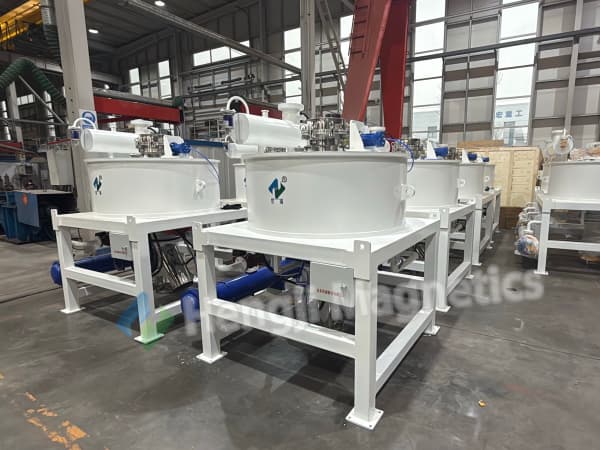

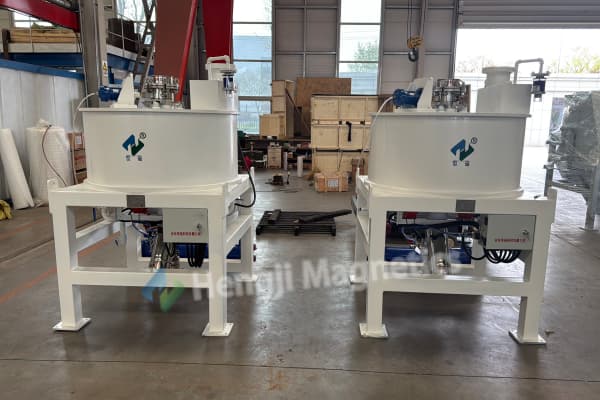

How the Electromagnetic Separator Machine Works

When you start the electromagnetic separator machine, a dedicated rectifier control cabinet supplies DC excitation power to the coil. Once energized, the steel magnetic conducting plates are immediately magnetized. Under the action of a vibratory motor, your powder or granular material passes through the magnetic plates from top to bottom. Iron particles and their oxides in the material are firmly captured on the surface of the magnetic plates, while purified material continues through. The entire process is continuous and automatic—all you need to do is feed the material in and collect the separated impurities.

Separation Performance You Can Rely On

The iron removal effectiveness of the electromagnetic separator machine is backed by real magnetic field strength. The working chamber achieves high magnetic flux density, with indicators reaching up to the 0–20,000 Gauss range. Combined with a stable magnetic circuit and adjustable excitation current from 0 to 60A, the machine efficiently captures iron and oxide contaminants from your material. For you, this means higher product purity and reduced risk of downstream equipment wear.

Broad Application Range

The electromagnetic separator machine is designed for powder and granular materials. It is a new type of vibratory iron removal equipment that can be directly integrated into your existing dry powder or granular processing lines. Whether you are in mineral processing, chemicals, ceramics, or other industries, separation techniques magnetism can be applied wherever ferrous contamination needs to be removed from dry, flowable materials.

Operational Stability and Protection Systems

Operational stability directly affects your continuous production. The electromagnetic coil generates significant heat during operation. If internal cooling oil is insufficient, the coil can burn out, leading to complete machine failure. Therefore, before starting the electromagnetic separator machine, you must confirm that cooling oil is filled slightly above the oil level mark. Operation without sufficient oil is strictly prohibited.

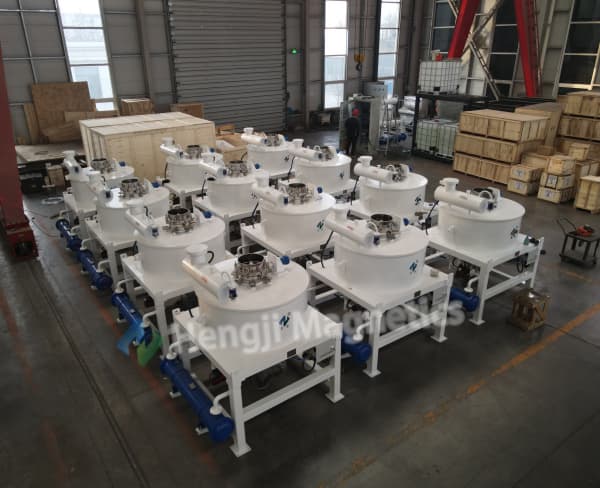

How the Electromagnetic Separator Machine Works 2

The machine features multiple protection systems including oil temperature alarms, over-temperature alarms, and over-current alarms. A tube-and-shell cooler reduces oil temperature; cooling water must be softened to prevent scaling, protecting the electromagnetic coil for long-term reliable operation. The circulation oil pump rotation direction must follow the motor fan markings to ensure correct oil flow—otherwise, cooling effectiveness is compromised.

Easy Adjustment for Different Materials

Adjustability is designed with your needs in mind. The vibration frequency and amplitude of the electromagnetic separator machine are both infinitely adjustable. By controlling the vibratory motor frequency with a variable frequency drive, you can fine-tune the iron removal efficiency and throughput for different materials. This flexibility allows the same machine to handle multiple material types, reducing duplicate investment.

Simple Installation and Maintenance

Installation and daily maintenance are straightforward. Place the unit in a suitable location and ensure reliable grounding. Before commissioning, verify that all piping connections are secure, the deflector plates and steel magnetic plates are correctly specified, feed and discharge ports are clear, and the control cabinet is placed in a clean, dry area with secure power connections.

A critical reminder: when adjusting the vibratory motor speed, avoid the frequency range where the equipment's natural frequency coincides with the vibration frequency—this can cause severe resonance and damage the unit. Do not modify temperature controller parameters without manufacturer authorization, as excessive temperature rise could damage the unit and void warranty coverage.

Why Choose the Electromagnetic Separator Machine

When you choose the electromagnetic separator machine, you are choosing more than a piece of equipment. You are choosing separation techniques magnetism—engineered, controllable, and protected by multiple safeguards. With strong magnetic fields, continuous automatic operation, and comprehensive safety features, it addresses all your concerns about iron removal effectiveness, application range, operational stability, and maintenance convenience. For businesses seeking to improve product purity and protect equipment, the electromagnetic separator machine deserves serious consideration.
