Suspended Magnetic Separator: The Essential Magnetic Separator for Quarry Operations
2026-09-20
In quarries, aggregate processing plants, and building panel production lines, ferrous contaminants such as excavator teeth, drill bit fragments, steel rod tips, and crusher liner pieces are a persistent threat. Once these tramp iron pieces enter crushers, cone crushers, screens, or other downstream equipment, they can cause abnormal liner wear or even unplanned shutdowns of the entire production line. Customers repeatedly ask: Can deeply buried iron under thick material layers be effectively lifted? Can the equipment operate reliably in dusty, rainy outdoor environments? Does iron removal require frequent manual cleaning shutdowns? The suspended magnetic separator designed as a magnetic separator for quarry addresses these exact concerns in the aggregate industry.
How the Suspended Magnetic Separator Works in Quarry Applications
The suspended magnetic separator consists of two main parts: the separator body and the discharge mechanism. The separator body features a well-designed magnetic circuit with high field strength and deep penetration—ideal for iron removal from thick material layers. The discharge mechanism includes a frame, cycloidal gearmotor, drive and tail pulleys, idlers, belt pulleys, V-belts, and a discharge belt with scrapers. Belt tension and tracking adjustments are made without stopping production using bearing adjustment devices. The suspended magnetic separator is suspended above or at the end of the conveyor by four lifting eyes to perform iron removal.
The magnetic circuit of this magnetic separator for quarry is computer-optimized for deep penetration and strong magnetic force. It removes ferrous materials from non-magnetic bulk materials. The magnetic system uses high-performance Neodymium permanent magnets in a composite circuit—delivering high field strength, no demagnetization over years of use, and maintenance-free operation. The drive uses a cycloidal gearmotor with automatic belt discharge, saving labor and ensuring reliable performance. This suspended magnetic separator is a robust solution for quarry duty.

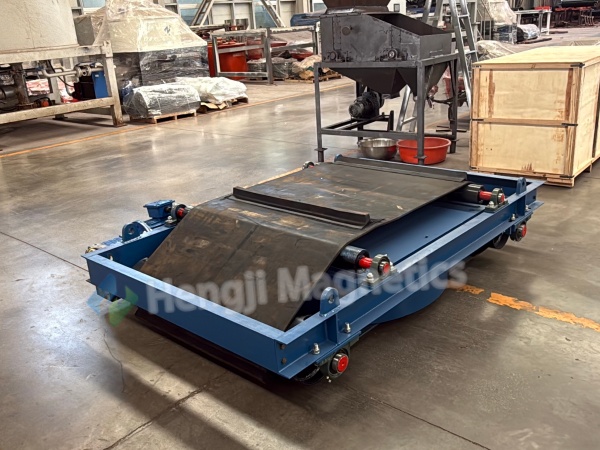

Key Features of the Magnetic Separator for Quarry
The magnetic separator for quarry is available in two installation configurations. One is installed at the conveyor head, where material trajectory helps the separator lift tramp iron. The other is installed at the middle of the belt conveyor, with the self-cleaning belt running perpendicular to the main conveyor—automatically removing ferrous contaminants in the perpendicular direction. It can also be installed above the belt, above picking stations, or above vibrating screens. The suspended magnetic separator is mounted using four lifting eyes, with sufficient rigging strength and adjustable suspension height.
This magnetic separator for quarry can remove ferrous materials weighing from 0.1 kg to 25 kg. The internal permanent magnetic system has a service life of over ten years. It offers maintenance-free operation, strong magnetic force, long life, simple installation, easy use, and reliable operation. The suspended magnetic separator is suitable for both indoor and outdoor use; for outdoor applications, a rain cover is recommended.
Customer Concerns Addressed by the Suspended Magnetic Separator
Quarry operators often worry about thick material layers. The suspended magnetic separator uses a computer-optimized magnetic circuit with deep penetration and strong magnetic force—effectively lifting deeply buried tramp iron. The magnetic separator for quarry removes ferrous contaminants from non-magnetic materials reliably.
Another concern is the harsh environment. The suspended magnetic separator features a fully sealed structure that protects the magnetic system and electrical components from dust and moisture. This magnetic separator for quarry operates reliably in dusty, rainy outdoor conditions. The automatic discharge belt eliminates frequent manual cleaning, reducing downtime and labor costs. The suspended magnetic separator is designed for continuous, dependable service.
Installation Flexibility of the Magnetic Separator for Quarry
The suspended magnetic separator offers flexible installation. It can be mounted at the conveyor head or middle section. The self-cleaning belt runs perpendicular to the main conveyor for effective tramp iron removal. The magnetic separator for quarry can also be installed above the belt, picking stations, or vibrating screens. Four lifting eyes allow easy suspension with adjustable height. This suspended magnetic separator adapts to different plant layouts and space constraints.
Case Study: Suspended Magnetic Separator in a Large Quarry
A large quarry faced thick material layers on its conveyor. Excavator teeth and steel rod tips frequently entered the cone crusher, causing monthly liner damage and high maintenance costs. After installing the suspended magnetic separator, deeply buried teeth and iron pieces were strongly lifted and continuously ejected into a collection bin by the automatic discharge belt. Cone crusher stability improved significantly, and liner service life nearly doubled.
According to quarry statistics, annual equipment maintenance costs were reduced by over $45,000. Reduced downtime also increased aggregate output. The equipment operated in an outdoor dusty environment for an extended period. The fully sealed structure of the magnetic separator for quarry effectively protected the magnetic system and electrical components—no failures occurred. The quarry equipment manager praised the suspended magnetic separator for its reliable performance.
Conclusion: Choose the Suspended Magnetic Separator for Quarry Operations
From quarry aggregate iron removal to mining impurity removal, from building panel production to chemical raw material purification, the suspended magnetic separator delivers strong magnetic force, automatic discharge, and reliable protection. As a dedicated magnetic separator for quarry, it solves the practical problem of tramp iron damaging crushers on conveyor lines.
If tramp iron in your stone materials is frequently damaging crushing equipment, the suspended magnetic separator deserves serious consideration. It is a reliable magnetic separator for quarry that keeps your production line running without interruption.
