Suspended Magnetic Separator: The Essential Magnetic Separator for Quarry Protection
2026-07-16
On quarry production lines, crushers, screens, and mills face constant threats from tramp iron. Drill bit fragments, excavator teeth, bolts, and steel bars—once they enter the crushing chamber—can damage conveyor belts, tear screen cloth, or jam and shatter crusher wear parts, leading to costly repairs and downtime. Traditional removal methods—manual sorting or simple electromagnets—are inefficient and unsafe. The suspended magnetic separator designed as a magnetic separator for quarry offers an automated, round‑the‑clock solution. Suspended above the conveyor line, it uses a powerful magnetic field to capture and remove tramp iron in real time, serving as the first safety barrier at the quarry’s crushing front. This suspended magnetic separator seamlessly integrates iron removal into material conveying—achieving “convey‑as‑you‑remove” automation.

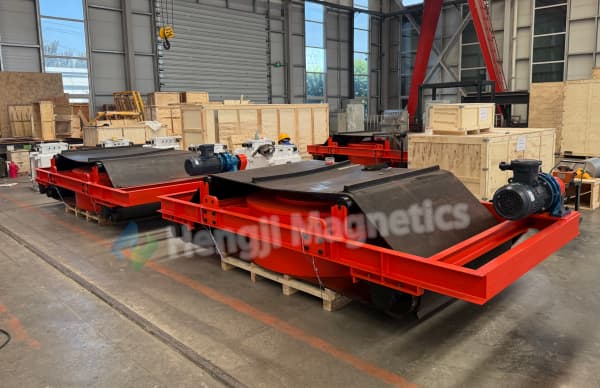

How the Suspended Magnetic Separator Handles Quarry Duty
The core strength of this magnetic separator for quarry lies in its magnetic circuit design, specifically optimized for quarry conditions. Quarry material is typically coarse‑grained, with thick burden layers, high conveying speeds, and significant dust and moisture—demanding deep penetration and high lifting force. The suspended magnetic separator uses a computer‑optimized magnetic circuit with high field strength and deep penetration, capable of lifting large tramp iron—bucket teeth, anchor rods, steel bars—from material layers several centimeters thick. The discharge mechanism, consisting of a frame, geared motor, drive and tail pulleys, and a discharge belt with scrapers, carries captured iron out of the field and ejects it automatically. This magnetic separator for quarry is available in permanent or electromagnetic versions—permanent type requires no power for the field and is maintenance‑free; electromagnetic type allows adjustable field strength for varying iron content.

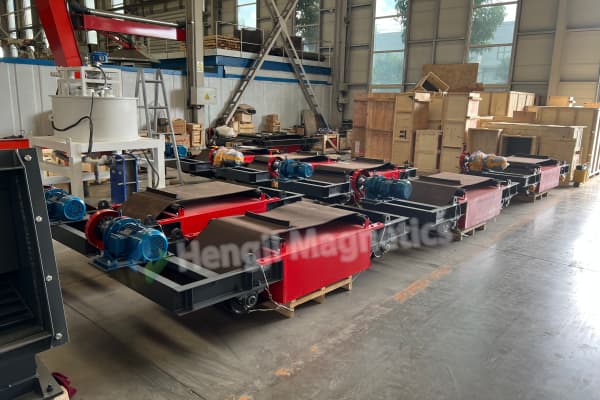

Key Customer Concerns About the Suspended Magnetic Separator
Adaptability to Harsh Quarry Environments
Quarries are dusty, vibratory, and subject to wide temperature and humidity swings—equipment must have high protection and structural integrity for long‑term reliability. The suspended magnetic separator features a fully sealed magnetic system with high IP rating, resisting dust and moisture ingress even in outdoor, high‑dust, high‑humidity conditions. The housing uses wave‑fin heat sinks to increase cooling area, reducing temperature rise and enabling continuous operation. The magnetic separator for quarry is designed for low power consumption and low noise, offering energy savings over conventional separators.
Installation Flexibility and Space Adaptability
Quarry lines are typically fixed, so ease of integration affects project feasibility and cost. The suspended magnetic separator offers flexible installation—inclined (head pulley) or horizontal (mid‑belt). For head‑pulley installation, the position can be adjusted based on belt speed to use material trajectory for better capture. For mid‑belt installation, horizontal suspension is used. Multiple suspension options are available: rod‑mounting to fixed hooks, chain suspension on trolleys, or wire‑rope suspension from traveling carriages—adapting to any site condition. The compact footprint makes the magnetic separator for quarry ideal for retrofit projects.
Throughput and Iron Removal Effectiveness
Quarries process high tonnages, so equipment must deliver both high throughput and effective removal. This suspended magnetic separator provides strong field strength and deep penetration, capturing contaminants from fine dust to heavy tramp iron weighing several kilograms. The self‑cleaning discharge belt automatically ejects and collects iron—the entire process runs continuously without manual intervention. For low‑iron feeds, a metal detector can be added for energy‑saving operation: the magnetic separator for quarry activates only when metal is detected, with automatic fail‑over to continuous mode if the detector fails.
Maintenance Costs and Service Life
Quarry operators seek long, trouble‑free operation to control total costs. The suspended magnetic separator allows belt tension and tracking adjustments without stopping the line. Daily maintenance is limited to clearing dust from the unit, greasing bearings, and checking belt wear. Permanent models offer 10+ year magnetic life with virtually no wear part replacement cost; electromagnetic models include intelligent protection against coil burnout. This low‑maintenance, long‑life design makes the suspended magnetic separator a high‑ROI investment for quarry protection.

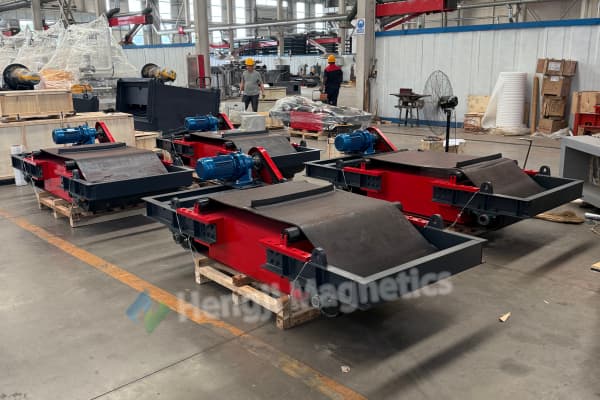

Applications of the Suspended Magnetic Separator in Quarries
The magnetic separator for quarry is essential wherever tramp iron threatens crushing and screening equipment:
-
Primary and secondary crusher protection: Removing excavator teeth, drill bits, and steel bars before they enter jaw or cone crushers.
-
Screen and conveyor protection: Capturing wire and fasteners that could damage screen cloth or tear belts.
-
Aggregate processing: Ensuring product purity for construction aggregates and asphalt mixes.
-
Recycling and demolition: Separating rebar and steel from crushed concrete and C&D waste.
Conclusion
The suspended magnetic separator designed as a magnetic separator for quarry is the essential protector for quarry crushing lines. With high‑field design, flexible installation, low maintenance, and long service life, it provides 24/7 automatic protection against tramp iron damage. For any quarry committed to safe, efficient, and cost‑effective production, a reliable suspended magnetic separator is the strategic choice—building a solid barrier against ferrous contamination at the source, ensuring every ton entering the crusher is cleaner and safer.
