Wet High Intensity Plate Magnetic Separator: Breaking the Wet Processing Bottleneck with High-Intensity Magnetic Separation

2026-08-19

In non-metallic mineral processing, lithium battery material production, fine chemicals, and ceramic raw material preparation, iron removal from wet slurries and fine particles has long been a persistent challenge. Conventional magnetic separators struggle with fine materials—clogging, severe material carryover, and insufficient field strength are common problems that compromise product purity and disrupt production stability. The wet high intensity magnetic separator configured as a plate magnetic separator was developed to address these industry-wide pain points. By combining the continuity of wet processing with the high-intensity field of plate-type magnetic separation, it delivers a breakthrough in both principle and structure.

How the Reverse-Flow Design Solves the Clogging Problem

The wet high intensity plate magnetic separator consists of a support frame, a plate magnetic system, a feed agitation system, a water system, an iron discharge system, and an adjustment system-. During operation, material flow and the discharge system move in opposite directions in a counter-current configuration. Non-magnetic material flows out by gravity and is thoroughly rinsed away, while magnetic particles are captured over an extended, multi-pass high-intensity field zone and then carried by the reverse-running discharge system to the iron outlet for complete rinsing-. This counter-current design fundamentally solves the clogging and severe carryover problems that have long plagued traditional equipment when processing fine particles.

In magnetic circuit design, the plate magnetic separator uses computer-optimized opposed-pole arrangements to maximize capture area and capacity across the working zone-. The magnetic core is constructed from high-strength rare earth Neodymium magnets, achieving peak field strengths up to 18,000 Gauss. The fully sealed magnetic system is oxidation-protected, ensuring less than 5% magnetic decay over ten years even in harsh environments.

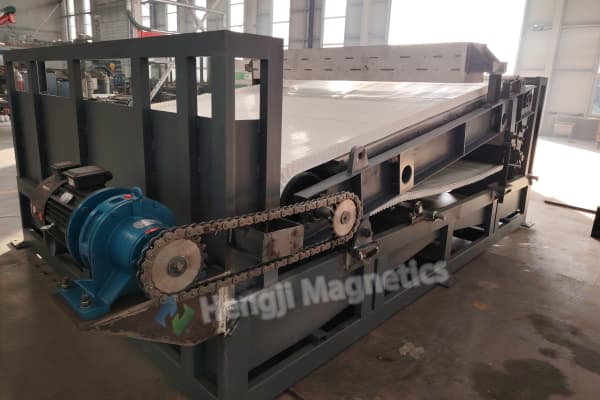

wet high intensity plate magnetic separator 1

Addressing Customer Concerns: How This Equipment Responds

Can the iron removal efficiency meet high-purity standards?

The wet high intensity magnetic separator is suitable for iron removal from weakly magnetic minerals and non-metallic ores below 5mm, including mica powder, quartz sand, potassium feldspar, nepheline, fluorite, sillimanite, spodumene, kaolin, manganese, ilmenite, and hematite-. In lithium battery material applications, the plate magnetic separator is specifically designed for slurry flow characteristics and magnetic field distribution, effectively removing weakly magnetic iron impurities. It is currently one of the most effective permanent magnet wet separation solutions available.

Is the equipment prone to clogging? Is maintenance difficult?

Clogging is a common pain point with traditional wet magnetic separators. The wet high intensity plate magnetic separator uses a plate-type separation structure combined with counter-current discharge, ensuring smooth material flow and preventing clogging of fine particles-. All product-contact parts are stainless steel or non-magnetic materials to prevent secondary contamination-. Material channels feature high-polish finishes to minimize material buildup, and channel geometry is designed to exceed the material's angle of repose—reducing residue while increasing throughput.

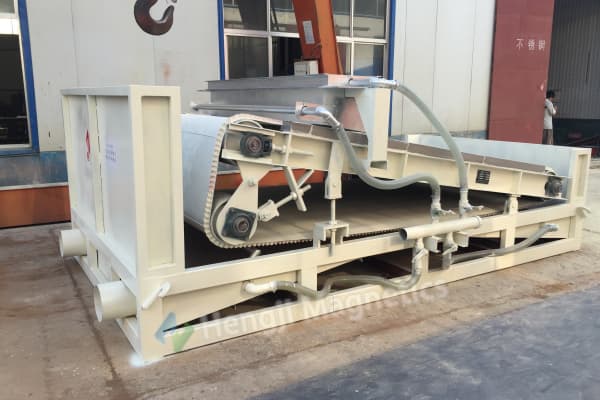

wet high intensity plate magnetic separator 2

Is installation and operation complicated?

The plate magnetic separator uses a variable-speed drive for fully automatic continuous operation and iron discharge, saving labor and ensuring reliable performance-. The feed system includes an agitator to ensure uniform slurry density when material enters the magnetic zone-. The water system uses a single inlet with individual valve control for each water point, allowing independent adjustment of water flow-. The unit is available in open or fully sealed configurations to suit different site conditions.

Does it offer good value for cost control?

The equipment costs approximately one-tenth of conventional vertical ring high-intensity magnetic separators-, offering exceptional cost-performance while fundamentally solving the clogging and carryover problems that plague traditional equipment when processing fine materials.

Field Applications

Quartz sand purification: A quartz processing company struggled with high iron content and substandard whiteness. After introducing the wet high intensity plate magnetic separator, they achieved a significant reduction in iron content and a marked increase in whiteness, meeting premium glass raw material specifications. No clogging or carryover issues have occurred, and the continuous automatic discharge function has eliminated frequent production stops, substantially improving efficiency.

Potassium feldspar iron removal: A potassium feldspar powder processor faced persistent difficulty removing weakly magnetic iron that affected ceramic glaze applications. Using the plate magnetic separator with its 18,000 Gauss field strength, fine weakly magnetic iron particles were effectively captured and removed, elevating product quality to first-grade ceramic standards.

Lithium battery materials: A lithium battery material producer needed strict control over weakly magnetic iron in slurries. The wet high intensity magnetic separator, with its specialized flow design and optimized magnetic field distribution, consistently reduced iron content to extremely low levels, significantly improving product qualification rates while the fully automatic operation reduced labor costs.

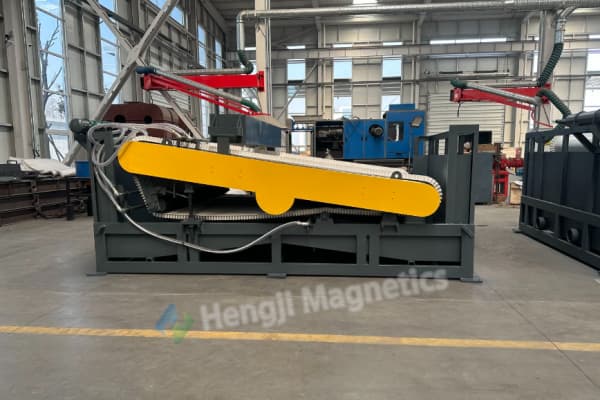

wet high intensity plate magnetic separator 3

Wide Industry Applications

The wet high intensity plate magnetic separator has been widely validated in iron removal and purification of non-metallic minerals including quartz sand, potassium feldspar, and kaolin, as well as in lithium battery material slurry processing-.

As mineral processing moves toward finer, higher-purity production, wet slurry iron removal and fine particle separation requirements continue to grow. The wet high intensity magnetic separator in its plate magnetic separator configuration integrates high-intensity magnetic separation with wet processing—delivering ultra-high field strength, reliable structural design, and automatic operation to provide an effective iron removal pathway from slurry to finished product.
