Dry Electromagnetic Separator: The Professional Ceramic Magnetic Separator for Powder Purification

2026-08-08

In ceramic production, raw material purity directly determines final product quality. Even trace amounts of iron impurities in glaze formulations can form black spots and discoloration on fired surfaces, downgrading products significantly. Ceramic raw materials contain iron impurities in various forms—some as free iron powder, others as iron oxides embedded in powder particles. These are difficult to separate effectively using conventional screening or gravity methods. This challenge has driven the development of the dry electromagnetic separator as a specialized ceramic magnetic separator for the ceramic industry.

What Is a Dry Electromagnetic Ceramic Magnetic Separator?

A dry electromagnetic separator designed as a ceramic magnetic separator is purpose-built for iron removal and purification of ceramic raw materials and powders. It integrates electromagnetic separation technology with ceramic process requirements, using a high-intensity electromagnetic field as the "screening filter" and a precisely controlled vibratory system as the "conveyor line." This enables high-precision selective separation of ceramic raw materials in dry powder processing.

The working principle is based on the core logic of magnetic separation: utilizing magnetic differences between material components. Under an external magnetic field, ferromagnetic impurities are captured while non-magnetic ceramic materials pass through freely—each follows its own path. This process is analogous to "selective adsorption" in chemistry: the magnetic field acts as a "selective reagent," acting only on ferromagnetic substances without affecting the ceramic materials themselves, ensuring product purity without secondary contamination.

How Does the Dry Electromagnetic Ceramic Magnetic Separator Work?

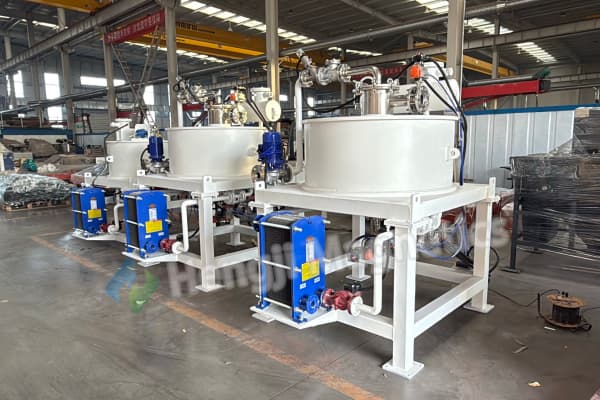

The dry electromagnetic separator is powered by a dedicated silicon rectifier control cabinet supplying DC excitation power. When energized, the internal steel magnetic plates become magnetized, forming a high-intensity magnetic field zone with working chamber flux density reaching 1.2 Tesla or higher. Ceramic powder is fed by a vibratory motor, passing uniformly through the magnetic plate layers from top to bottom. Iron and its oxides are firmly captured on the magnetized plates, while purified ceramic material passes through, completing the separation.

The vibration frequency and amplitude of the ceramic magnetic separator are both infinitely adjustable. Based on different ceramic raw material characteristics—particle size, moisture content, and flowability—users can flexibly adjust these parameters to achieve the optimal balance between iron removal efficiency and throughput. This truly enables "one machine, multiple materials."

Addressing Customer Concerns: How Does This Dry Electromagnetic Separator Respond?

In the ceramic industry, customers focus on specific performance aspects. The dry electromagnetic separator design addresses each of these concerns directly.

Regarding Iron Removal Effectiveness: Ceramic raw materials demand high purity, as residual iron directly affects fired whiteness and translucency. The dry electromagnetic separator achieves working chamber flux density up to 1.2T, providing sufficient field strength to effectively capture fine ferromagnetic impurities and weakly magnetic iron oxides in powder materials—meeting the production requirements of high-grade ceramic raw materials.

Regarding Material Adaptability: From kaolin to feldspar and quartz, different ceramic raw materials vary significantly in properties. The dry electromagnetic separator allows stepless adjustment of vibration frequency and amplitude, enabling users to adapt to different materials and achieve optimal separation results.

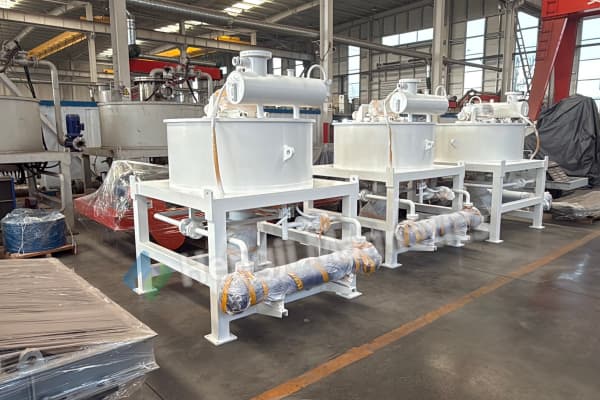

Regarding Operational Stability and Safety: The ceramic magnetic separator features dual protection with over-temperature and over-current alarms. A tube-and-shell cooler with transformer oil circulation cooling effectively controls electromagnetic coil temperature rise, ensuring stable operation during long continuous production runs. Cooling water must be softened to prevent scaling in the cooler, maintaining cooling efficiency.

Addressing Customer Concerns: How Does This Dry Electromagnetic Separator Respond?

Regarding Operational Convenience: The dry electromagnetic separator runs fully automatically. With VFD control of the vibratory motor, adjustment is flexible and intuitive. No dedicated attendant is required, effectively reducing labor costs.

Regarding Maintenance and Service Life: Daily maintenance includes checking oil level before each shift, periodic transformer oil changes, and cleaning dust from the electrical cabinet—ensuring long-term stable operation. Common faults are covered in the manual with corresponding troubleshooting procedures, keeping maintenance requirements low.

Beyond Ceramics: A Wide Range of Applications

While the ceramic magnetic separator is primarily designed for ceramic applications, its technical principles make it equally effective in other industries. In chemicals, non-metallic mineral processing, refractories, abrasives, carbon black, and glass, the dry electromagnetic separator delivers stable performance for high-precision iron removal from powder and granular materials.

Conclusion

The dry electromagnetic separator designed as a ceramic magnetic separator is more than a simple "iron magnet." It is a specialized piece of equipment built on electromagnetic separation technology, specifically targeted at ceramic powder purification. By combining the precision of electromagnetic separation with the stringent requirements of ceramic processing, it helps manufacturers control purity at the raw material stage—improving product competitiveness from the source. If your production line faces iron contamination challenges in ceramic raw materials or powders, this equipment deserves serious consideration.
