Purity Unleashed: The Electro Magnetic Separator Test for Magnesium Hydroxide

2025-12-22

Achieving ultra-high purity in Magnesium Hydroxide is a strict requirement for advanced applications. Even trace amounts of ferrous contamination can devalue the final product. Traditional separation methods often fall short, especially for dry powder processing. To address this challenge, we conducted a rigorous field test using a specialized dry high intensity magnetic separator: the DCZ Electro Magnetic Separator. The results demonstrate a clear, effective path to premium-grade purity.

The Purity Challenge in Magnesium Hydroxide

For use in high-end chemical and refractory materials, iron content must be minimized. Contamination typically enters during crushing and grinding stages. Common separation methods struggle with the fine, dry, powdery nature of the material, creating a significant production bottleneck.

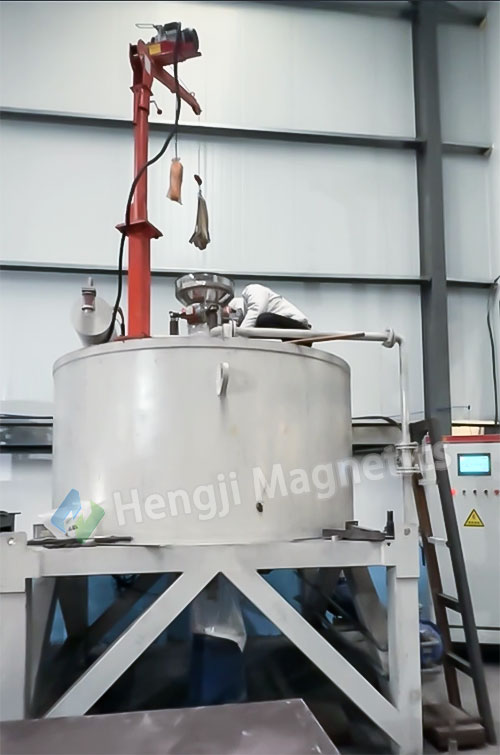

Test Setup: Simulating Real Production Conditions

We designed the test to validate the electro magnetic separator in a real-world scenario.

Material: Dry, powdered Magnesium Hydroxide.
Goal: Remove fine iron particles and oxides.
Equipment: The DCZ dry high intensity magnetic separator, engineered for fine dry powders.

Core Technology: How the Electro Magnetic Separator Works

The test highlighted the machine's powerful and intelligent design.

High-Intensity Electromagnetic Field: Upon energization, the unit generates a powerful, adjustable magnetic field (1.2T to over 2.0T). This strong force is essential for a dry high intensity magnetic separator to capture fine, weakly magnetic contaminants.
Controlled Material Flow: A variable-frequency vibratory feeder ensures a uniform, thin curtain of powder falls through the magnetic zone. This prevents clumping and exposes all material to the magnetic field.
Automatic Separation: Ferrous particles are instantly captured on magnetic plates, while purified Magnesium Hydroxide passes through unaffected.

Test Setup: Simulating Real Production Conditions

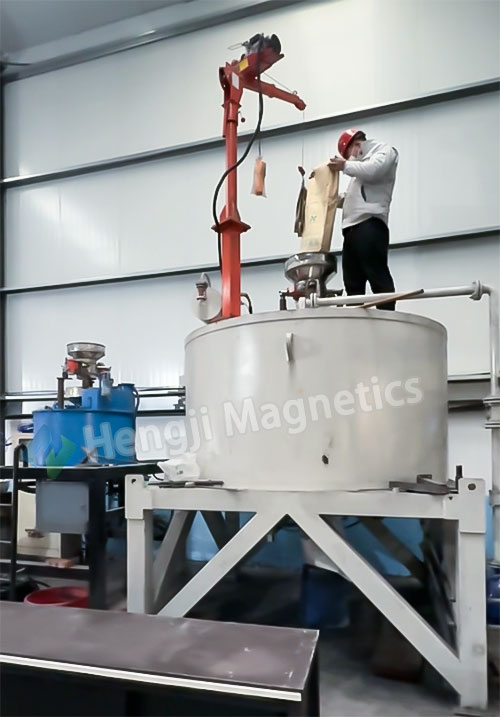

Key Operational Advantages Demonstrated

1. Fully Automated, Continuous Process:

The electro magnetic separator features automatic self-cleaning.
Captured iron is discharged without stopping production.
This enables true 24/7 operation with minimal labor.

2. Intelligent Cooling & Protection:

A built-in tube cooling system with soft water prevents scaling.
Multi-level safety systems (over-temperature, over-current alarms) protect the coil.
Operation remains stable and safe, with temperatures controlled below 100°C.

3. Dry Processing Integrity:

As a dry high intensity magnetic separator, it processes material without liquids.
This eliminates the risk of product clumping, moisture addition, or secondary processing.

The Measured Results: Purity and Efficiency

Post-test analysis confirmed the technology's effectiveness.

High Purity Achieved: Iron content was reduced to levels meeting stringent industry specifications.
Superior Efficiency: Removal rates significantly outperformed traditional magnetic methods used on dry powders.
Operational Data: The electro magnetic separator operated continuously at rated power (10-50kW, model-dependent), proving both effective and energy-conscious for its duty.

Beyond Magnesium Hydroxide: Wide Applicability

While tested on Magnesium Hydroxide, this dry high intensity magnetic separator is a versatile solution. Its principle is effective for a wide range of non-metallic minerals and dry powders where ferrous contamination is a concern, including:

Other chemical powders
Abrasives
Ceramic materials

Conclusion: A Strategic Investment for Premium Products

For producers of Magnesium Hydroxide and similar high-value powders, purity is profitability. The DCZ electro magnetic separator is not merely a filter; it is a critical quality assurance system. This test proves it delivers:

Unmatched Purity: Meets the most demanding specifications.
Production Efficiency: Fully automated, continuous dry processing.
Reliability & Safety: Built with robust cooling and protection systems.
Strong ROI: Justifies its investment through upgraded product value and reduced operational costs.

Ready to transform your product purity and secure a premium market position? Contact our technical experts to discuss how this proven dry high intensity magnetic separator can be integrated into your process. Let the DCZ electro magnetic separator turn your purity challenge into your greatest competitive advantage.
