Engineering Peak Cooling: How Oil-Cooling Technology Ensures Stability in High-Power Electro Overband Magnets and Suspended Electro Magnets

2026-01-17

In the demanding world of high-volume material processing, consistent magnetic force is non-negotiable. For powerful electro overband magnets and heavy-duty suspended electro magnet systems, heat is the primary enemy of performance and longevity. Achieving thermal stability under continuous operation is the ultimate engineering challenge. This is where advanced oil-cooling technology delivers its ultimate value, transforming intense electromagnetic heat into a controlled, predictable variable.

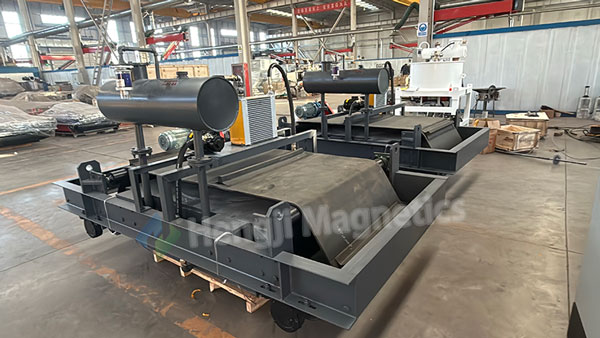

The Core System: Closed-Loop, Forced-Oil Circulation

At the heart of every high-performance oil-cooled magnet is a self-contained, pressurized cooling system. Unlike simple air cooling, this method provides a massive thermal buffer and precise temperature management for both electro overband magnets spanning wide conveyors and compact, high-intensity suspended electro magnet units.

Immersion & Primary Heat Transfer: The electromagnetic coil—the primary heat source—is fully submerged in a reservoir of specialized transformer oil. This dielectric fluid has excellent heat capacity and insulation properties, absorbing heat directly from the coil's surface.
Forced Circulation & Active Cooling: A dedicated pump drives the heated oil out of the magnet body and into an external heat exchanger (condenser). Here, high-capacity fans force air across the exchanger's fins, rapidly dissipating the heat. The now-cooled oil is cycled back to the coil, creating a continuous "coil → hot oil → condenser → cool oil → coil" loop. This active system ensures heat is constantly removed, not just contained.

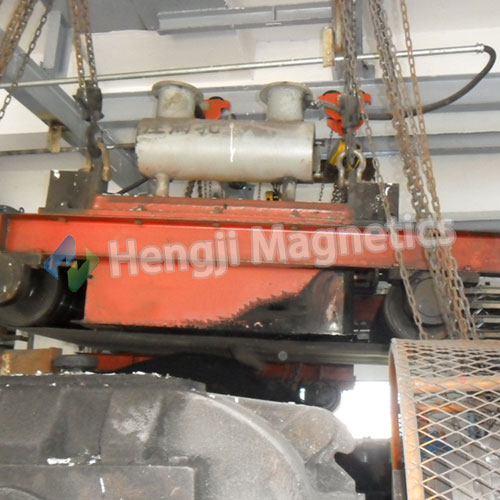

The Result: Predictable Performance in Continuous Duty

For operations that cannot afford downtime, the value of this engineered cooling becomes crystal clear.

Dynamic Thermal Equilibrium: Upon start-up, the system reaches a stable operating temperature typically within 30-60 minutes. At this point, the heat generated by the coil equals the heat dissipated by the cooling system, creating a steady state. This equilibrium is a hallmark of a properly functioning oil-cooled electro overband magnets.
Stable Magnetic Output: By maintaining a consistent coil temperature, the electrical resistance of the coil remains stable. This translates directly into a consistent current draw and, most importantly, a unwavering magnetic field strength. Your suspended electro magnet delivers the same powerful separation at hour one as it does at hour eight.
Extended Equipment Life: Excessive heat is the primary cause of insulation breakdown and component failure. By rigorously controlling operational temperature, oil-cooling dramatically extends the service life of the entire magnet assembly, protecting your capital investment.

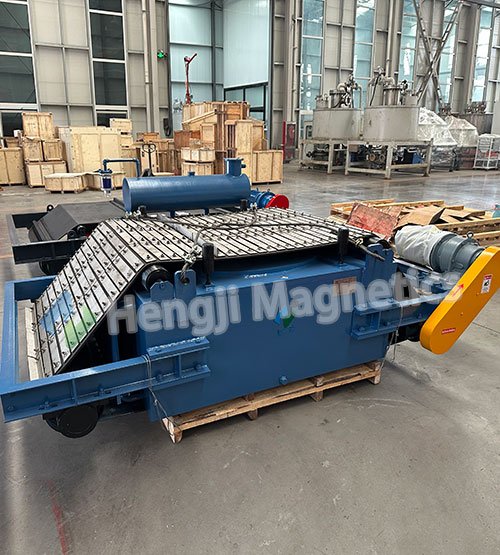

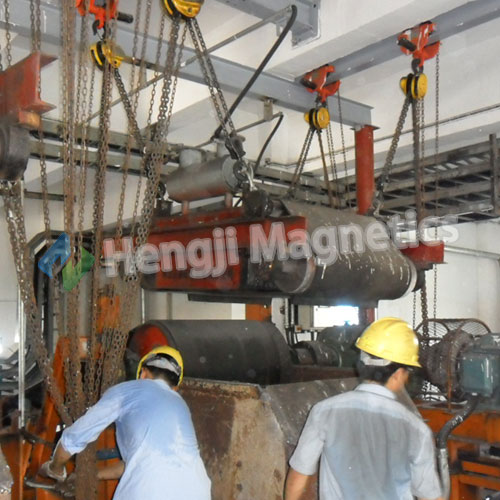

Why Oil-Cooling is the Choice for Critical Applications

When evaluating cooling technologies for severe-duty applications, consider these advantages of oil-cooled systems:

Superior Heat Capacity: Oil absorbs far more heat per volume than air, handling the intense thermal loads of large electro overband magnets.
Environmental Resistance: The sealed system protects sensitive internal components from moisture, dust, and corrosive atmospheres, making it ideal for harsh plant environments.
Proven Durability: This robust, industrial-grade cooling solution is designed for 24/7 operation, offering unmatched reliability for continuous processes in mining, recycling, and aggregate production.

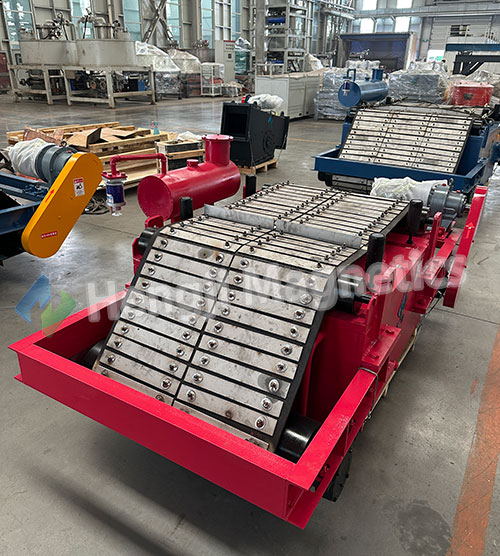

The Result: Predictable Performance in Continuous Duty 1

Why Oil-Cooling is the Choice for Critical Applications

The Result: Predictable Performance in Continuous Duty

For operations that cannot afford downtime, the value of this engineered cooling becomes crystal clear.

Dynamic Thermal Equilibrium: Upon start-up, the system reaches a stable operating temperature typically within 30-60 minutes. At this point, the heat generated by the coil equals the heat dissipated by the cooling system, creating a steady state. This equilibrium is a hallmark of a properly functioning oil-cooled electro overband magnets.
Stable Magnetic Output: By maintaining a consistent coil temperature, the electrical resistance of the coil remains stable. This translates directly into a consistent current draw and, most importantly, a unwavering magnetic field strength. Your suspended electro magnet delivers the same powerful separation at hour one as it does at hour eight.
Extended Equipment Life: Excessive heat is the primary cause of insulation breakdown and component failure. By rigorously controlling operational temperature, oil-cooling dramatically extends the service life of the entire magnet assembly, protecting your capital investment.

Why Oil-Cooling is the Choice for Critical Applications

When evaluating cooling technologies for severe-duty applications, consider these advantages of oil-cooled systems:

Superior Heat Capacity: Oil absorbs far more heat per volume than air, handling the intense thermal loads of large electro overband magnets.
Environmental Resistance: The sealed system protects sensitive internal components from moisture, dust, and corrosive atmospheres, making it ideal for harsh plant environments.
Proven Durability: This robust, industrial-grade cooling solution is designed for 24/7 operation, offering unmatched reliability for continuous processes in mining, recycling, and aggregate production.

Conclusion: Invest in Engineered Thermal Management

Choosing an oil-cooled suspended electro magnet or electro overband magnets is not just selecting a magnet; it's investing in a sophisticated thermal management system. It represents a commitment to operational consistency, minimized downtime, and long-term equipment value. For the most demanding applications where performance cannot waiver, the engineered solution of forced-oil circulation delivers the thermal stability that powers relentless efficiency.
