Electromagnet Overbelt Magnetic Separator: Automatic Iron Removal for Conveyor Lines Without Downtime
2026-09-17
On production lines in power generation, mining, metallurgy, building materials, coal preparation, and chemical industries, ferrous contaminants such as nails and iron blocks in bulk materials are a persistent threat to equipment safety. Once these tramp iron pieces enter crushers, grinding mills, or other downstream equipment, they can cause equipment damage or even unplanned shutdowns of the entire production line. Customers repeatedly ask: Can tramp iron on conveyor lines be removed effectively? Can deeply buried iron under thick material layers be lifted? Does iron removal require frequent manual cleaning shutdowns? Can the equipment operate reliably in harsh dust and rain conditions? The overbelt magnetic separator with electromagnet separator technology was designed to address these practical concerns.

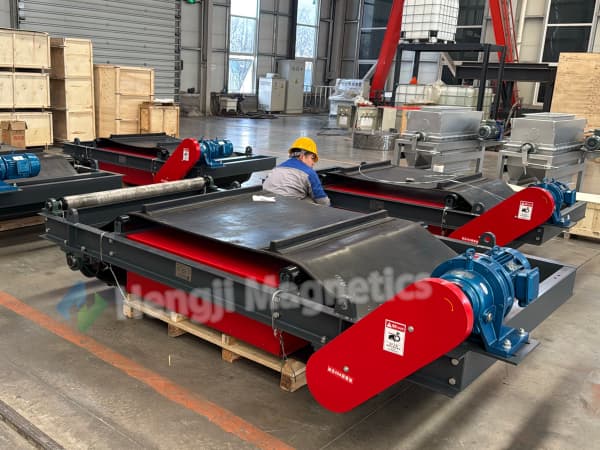

What Is an Overbelt Magnetic Separator and Electromagnet Separator?
The overbelt magnetic separator consists of two main parts: the separator body and the discharge mechanism. The separator body includes the magnet, excitation coil, condenser, oil pump, axial fan, flow indicator, oil conservator, and transformer oil. The discharge mechanism includes the discharge belt, drive drum, tail drum, idlers, and drive unit. The entire unit uses electrical-grade resin encapsulation with a self-cooling, fully sealed structure. It offers deep magnetic penetration, strong lifting force, dust resistance, rain resistance, corrosion resistance, and automatic belt tracking. This electromagnet separator operates reliably even in extremely harsh environments.
How Does the Overbelt Magnetic Separator Remove Iron Automatically?
The overbelt magnetic separator is typically installed at the head or middle section of a belt conveyor. It lifts ferrous contaminants from the material stream and ejects them via the discharge belt—achieving automatic removal while preventing longitudinal belt tearing and protecting crushers and mills. When the excitation coil is energized, a powerful magnetic field is generated. As bulk material passes beneath the electromagnet separator, ferrous contaminants are attracted to the bottom working face. The self-cleaning belt system, driven by a gearmotor, forcibly ejects the captured iron out of the conveyor path. This overbelt magnetic separator design ensures continuous automatic iron removal without manual intervention.

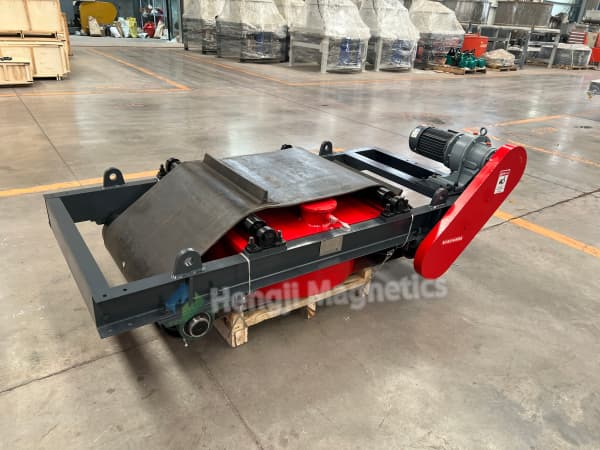

Key Design Features of the Electromagnet Separator
The magnetic circuit of the electromagnet separator is computer-optimized for deep penetration and strong magnetic force. It removes ferrous materials from non-magnetic bulk materials effectively. The excitation coil uses specialized electromagnetic wire with Class F insulation. The magnetic system is vacuum-encapsulated, completely isolating windings from air—effectively resisting moisture and dust for reliable operation in harsh environments.
The drive drum uses a crowned structure with automatic tracking correction, preventing discharge belt misalignment during high-speed operation. A rubber scraper above the discharge drum—integrated with the endless belt—prevents captured iron from re-entering the magnetic field. This design avoids damage from external stainless steel scrapers and prevents flying debris hazards. The overbelt magnetic separator delivers reliable, safe performance.
Case Study: Overbelt Magnetic Separator Protects Crushers at Building Materials Plant
A building materials plant had long suffered from tramp iron in its raw material conveyor line. Crushers frequently jammed due to iron pieces, with high monthly maintenance costs. After introducing the overbelt magnetic separator, deeply buried nails and iron blocks in the material were lifted by the powerful electromagnetic field. The automatic discharge belt continuously ejected them into a collection bin. Crusher operation stability improved significantly, and failure rates dropped sharply.
According to plant statistics, annual maintenance costs were reduced by hundreds of thousands of dollars. Reduced downtime also increased production output. The equipment operated in an outdoor dusty environment for an extended period. The sealed structure effectively protected the coil and electrical components from dust and moisture—no failures occurred. The plant’s equipment management team praised the electromagnet separator for its reliable performance.
Applications of the Electromagnet Separator Across Industries
The overbelt magnetic separator can be used indoors and outdoors. For outdoor use, a rain cover should be added. This series of electromagnet separator equipment is widely used in power generation, mining, metallurgy, building materials, coal preparation, and chemical industries. It is suitable for removing ferrous contaminants from non-magnetic materials ranging from powder to bulk solids.
From coal handling in power plants to ore processing in mines, from building materials production to chemical raw material purification, the overbelt magnetic separator delivers strong electromagnetic attraction, automatic continuous iron discharge, and reliable sealed protection. It solves the practical problem of tramp iron damaging downstream equipment on conveyor lines.

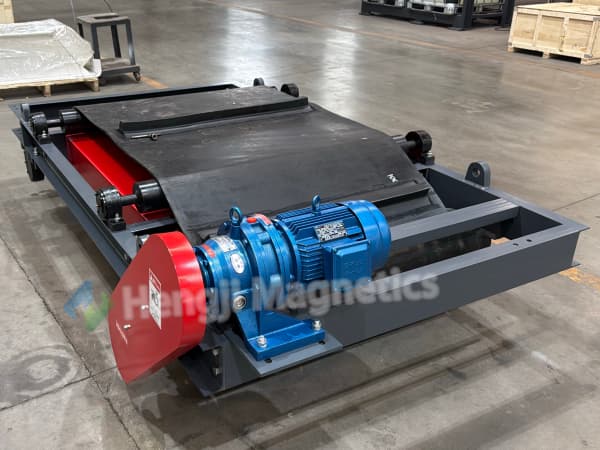

Installation and Maintenance of the Overbelt Magnetic Separator
The electromagnet separator is designed for easy installation. It can be suspended above the conveyor using rods, chains, or wire ropes. The magnetic centerline must align with the belt centerline. For outdoor installation, a weather cover is required.
Maintenance is minimal. The sealed structure protects internal components from dust and moisture. Routine checks include verifying the oil level in the conservator, inspecting the discharge belt for wear, and ensuring the scraper is properly positioned. The overbelt magnetic separator requires no frequent manual cleaning—the automatic discharge belt handles iron removal continuously.
Conclusion: Choose the Overbelt Magnetic Separator for Non-Stop Conveyor Protection
If tramp iron on your conveyor line is frequently damaging downstream equipment, the overbelt magnetic separator with electromagnet separator technology deserves serious consideration. It delivers powerful electromagnetic lifting, automatic continuous discharge, and reliable sealed protection—keeping your production line running without interruption.
From power generation to mining, from building materials to chemicals, the overbelt magnetic separator and electromagnet separator are solving real conveyor iron removal challenges. Choose the overbelt magnetic separator for automatic iron removal and non-stop equipment protection.
