Disc Electromagnetic Separator: Making Bulk Material Iron Removal Easier
2026-09-09
In power generation, mining, metallurgy, building materials, coal preparation, and chemical industries, ferrous contamination in non-magnetic bulk materials is a persistent challenge. Tramp iron can damage crushers and grinding mills, cause unplanned shutdowns, and tear conveyor belts—resulting in significant economic losses. Customers consistently ask: Is the iron removal effective enough? Can the equipment withstand harsh environments? Is it reliable and easy to maintain? Are energy and maintenance costs high? The disc magnetic separator with electro magnetic separator technology was designed to address these exact concerns.

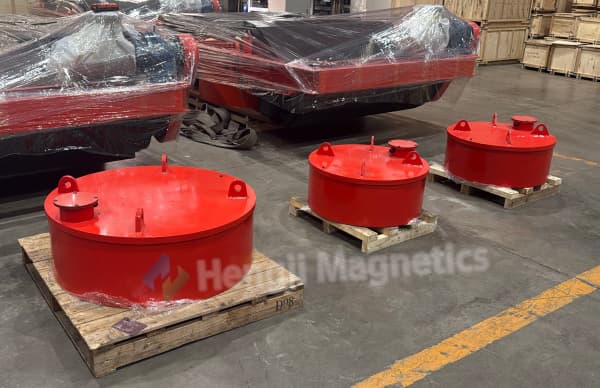

How Does the Disc Electromagnetic Separator Work?
The disc electromagnetic separator uses resin-potted construction with a self-cooling, fully sealed structure. It delivers deep magnetic penetration, strong lifting force, and resistance to dust, rain, and corrosion—ensuring reliable operation even in the most demanding environments. It is widely used in power generation, mining, metallurgy, building materials, coal preparation, and chemical industries.
The magnetic circuit is computer-optimized for deep penetration and strong magnetic force, ensuring sufficient lifting power at the working distance. It effectively removes ferrous materials ranging from 0.1 kg to 35 kg from non-magnetic materials. The excitation coil uses specialized electromagnetic wire with Class F insulation. The magnetic system is vacuum-encapsulated, completely isolating windings from air—effectively resisting moisture and dust for reliable operation in harsh conditions.

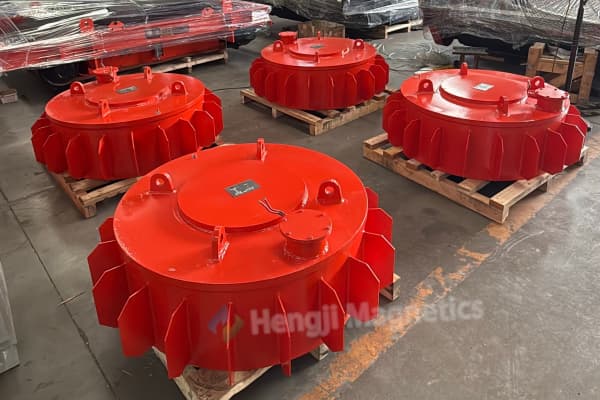

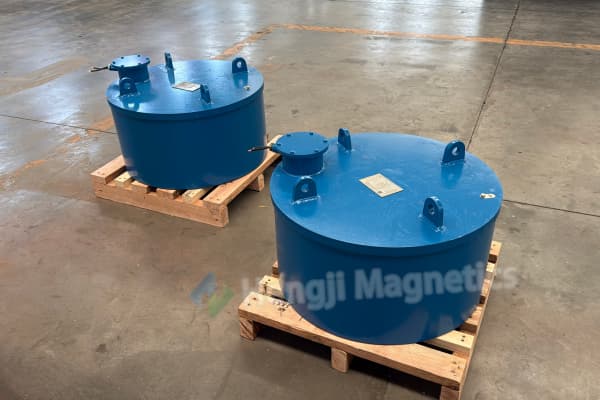

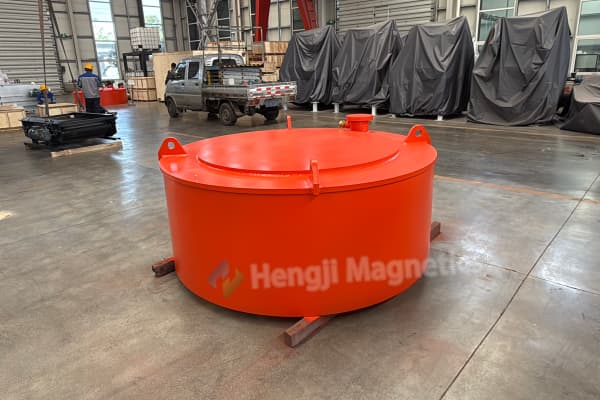

Addressing Customer Concerns with the Disc Electromagnetic Separator
Concern 1: Deep-Buried Tramp Iron Cannot Be Removed – Iron Removal Effectiveness Falls Short
A common complaint with conventional separators is insufficient field strength and penetration depth. When material layers are thick, tramp iron at the bottom cannot be attracted—allowing contaminants to reach downstream processes and cause equipment damage.
The disc electromagnetic separator uses computer-optimized magnetic circuits with deep penetration and strong lifting force—ensuring effective iron removal even through thick material layers. A cement plant faced frequent crusher jams due to tramp iron, with monthly maintenance costs exceeding $40,000. The existing separator could only remove surface iron. After introducing the **disc magnetic separator**, deep-buried tramp iron was effectively removed with the same material layer thickness. Crusher failure rates dropped significantly, saving over $40,000 annually in maintenance costs.
Concern 2: Can the Disc Electromagnetic Separator Withstand Harsh Conditions?
Power plants, mines, and cement plants are dusty, humid, and subject to wide temperature variations. Ordinary separators suffer from coil moisture ingress, insulation degradation, and poor heat dissipation.
The electro magnetic separator is designed for harsh environments. The coil uses Class F insulation with vacuum encapsulation, completely isolating windings from air—resisting moisture and dust for long-term stable operation. Advanced dry-type transformer technology reduces weight and improves heat dissipation, while DT4 electrical pure iron enhances magnetic flux conduction and field stability. The fully sealed cast steel bearing housings prevent dust ingress, extending bearing life.
Concern 3: High Energy Consumption – Are Operating Costs Manageable?
Electromagnetic equipment has a reputation as an "electricity hog," making many customers hesitant about energy costs. The disc electromagnetic separator is optimally designed for low power consumption and low noise—saving over 30% energy compared to conventional separators. A metal detector interlock can be added—the unit stays in standby mode when no iron is detected, only activating upon detecting tramp iron. This further reduces wasteful energy consumption, with significant annual electricity savings.
Concern 4: Is the Disc Electromagnetic Separator Reliable and Easy to Maintain?
Frequent maintenance and replacement are a constant headache in harsh environments. The disc electromagnetic separator delivers long-term continuous trouble-free operation with minimal maintenance. The fully sealed structure protects against dust and moisture, extending component life. Daily maintenance is limited to periodic cleaning and bearing lubrication—truly "install and forget."
Flexible Installation for Any Site
The disc electromagnetic separator offers flexible installation options—inclined mounting at the conveyor head or horizontal mounting above the belt, picking stations, or vibrating screens. The compact design adapts to different site conditions with multiple suspension options.
Conclusion
From power plant coal conveying to mining, coal preparation, building materials, and chemicals, the disc magnetic separator with electro magnetic separator technology—with its deep magnetic penetration, reliable sealed construction, significant energy savings, and flexible installation—is helping more operations solve bulk material iron removal challenges. If iron removal effectiveness, high failure rates, or energy and maintenance costs are a concern, the disc electromagnetic separator deserves serious consideration.
