High Gradient Dry Magnetic Separator – Achieving Ultra-Fine Iron Removal from Dry Powders
2026-08-17
Removing ferrous impurities from dry powders has long been a common challenge in refractories, non-metallic minerals, abrasives, chemicals, and building materials. Even trace amounts of iron powder can affect product purity and cause downstream quality issues. The high gradient magnetic separator designed as a dry magnetic separator addresses this need, combining dry separation processes with high-gradient magnetic field technology to achieve fine iron removal in dry processing.

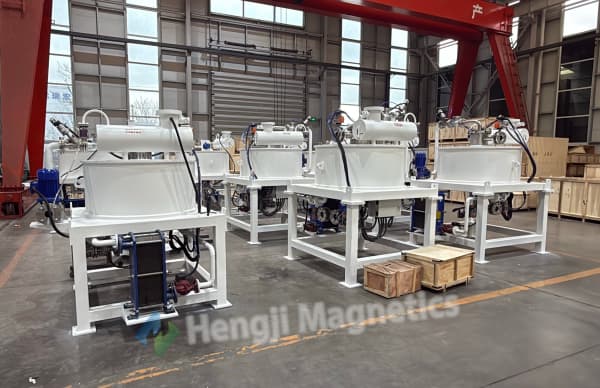

How Does a High Gradient Dry Magnetic Separator Work?
Magnetic separation is a beneficiation method that exploits differences in magnetic susceptibility between minerals in a magnetic field. When material enters the separation zone, particles experience both magnetic and mechanical forces—particles with different magnetic properties follow different paths, achieving separation. The high gradient magnetic separator builds on this with a high-gradient magnetic circuit: the magnetic system is computer-optimized with an opposed-pole arrangement that creates a high-gradient field zone, significantly increasing capture area and capacity. Material is fed uniformly onto the conveyor belt by a vibratory feeder. When it reaches the high-gradient magnetic roll zone, ferrous particles are firmly attracted and carried as the roll rotates to the discharge area, where a scraper pushes them out—they then lose magnetic attraction and fall by gravity. Non-magnetic material continues along its normal path, completing separation.
How Is the High Gradient Dry Magnetic Separator Different from Conventional Dry Magnetic Separators?
Conventional dry magnetic separators use standard permanent magnetic drums with limited field strength and gradient, making micron-sized iron powder capture less effective. The high gradient magnetic separator uses a high-strength rare earth Neodymium core with a computer-optimized opposed-pole magnetic circuit that creates a high-gradient field zone in the separation area—effectively capturing fine ferrous particles that conventional separators miss. High-grade Neodymium magnets with strong energy product and fully sealed magnetic construction prevent oxidation, ensuring minimal magnetic decay over ten years in harsh environments. The variable frequency drive delivers automatic continuous operation and discharge, saving labor and ensuring reliable performance.

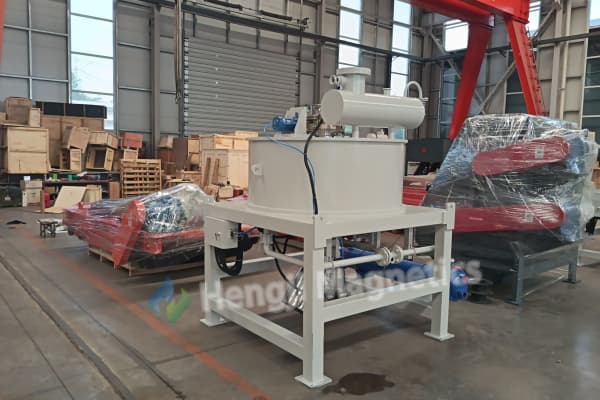

Which Industries Need a High Gradient Dry Magnetic Separator Most?
The high gradient dry magnetic separator is widely used in dry powder iron removal applications. In refractories, it removes iron impurities from raw materials to improve high-temperature performance. In non-metallic mineral processing—quartz sand, feldspar, kaolin—the high-gradient field effectively removes fine iron powder, improving whiteness. In abrasives, it removes ferrous contaminants to ensure cutting performance and service life. In chemicals and food, it removes iron from raw materials and intermediates to guarantee purity. The unit is also used in carbon black, grain, and feed applications. With automatic feeding, compact size, energy efficiency, and easy installation, it adapts to different particle sizes.

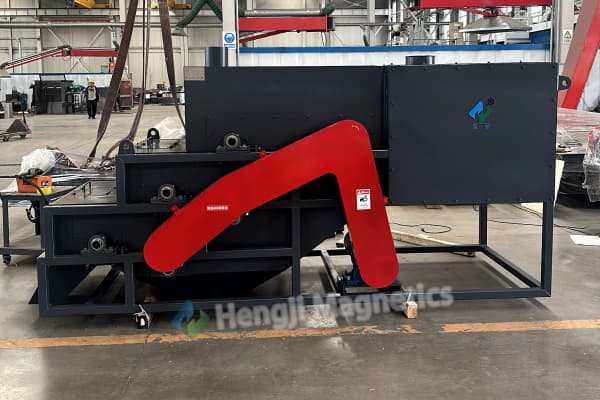

Does the High Gradient Dry Magnetic Separator Meet Customer Iron Removal Requirements?
Iron removal effectiveness is the top customer concern. The high gradient dry magnetic separator features an ultra-strong full-magnetic roll with a unique magnetic circuit delivering strong surface field strength and high lifting force. The front roll uses a high-gradient field design with multiple magnetic zones arranged in layers for progressive filtration—capturing fine ferrous particles that conventional separators miss. For low-iron fine materials, the high-gradient field effectively captures micron-sized iron powder, significantly reducing product iron content. For high-iron materials, large ferrous particles are firmly attracted, meeting different industry requirements for iron removal depth.
Is Installation and Commissioning Convenient?
The dry magnetic separator is simple to install—directly on level ground with reliable grounding. After connecting the three-phase motor feed, check drum rotation direction through the viewing port to ensure alignment with material feed direction. The magnetic angle is pre-adjusted at the factory; only minor adjustments are needed based on material conditions—adjust the magnetic angle linkage until complete separation is achieved. For units with vibratory feeders, briefly power on to confirm motor rotation matches the marking. Material bed thickness on the belt can be controlled based on concentration and particle size. The commissioning process is clear and simple, requiring minimal operator training.
How Much Daily Maintenance Does a High Gradient Dry Magnetic Separator Require?
The high gradient dry magnetic separator is maintenance-free and energy-saving. The permanent magnetic core delivers stable, high-lift iron removal with zero power consumption for field generation, safe and reliable. The magnetic system is sealed inside the housing, fully isolated from dust, moisture, and high temperatures—ensuring long-term stability with less than 5% demagnetization over eight years. Daily maintenance is limited to periodic checks of moving parts and cleaning dust from the magnetic system; at the end of each work cycle, clean accumulated iron from the magnetic system promptly to prevent magnetic loss. The simple structure requires minimal maintenance and no dedicated attendant.

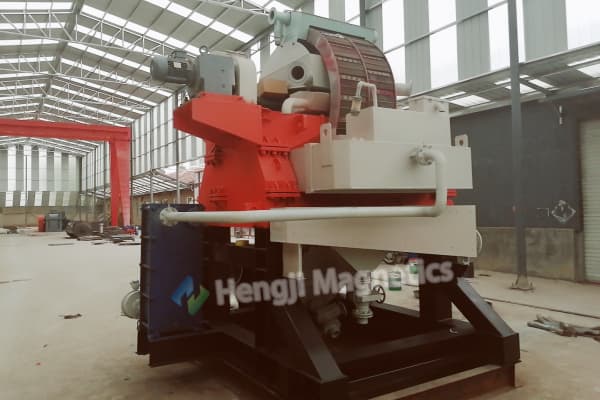

How Does the High Gradient Dry Magnetic Separator Adjust to Different Materials?
The dry magnetic separator allows flexible adjustment of feed gate opening and roll speed based on hourly throughput. Roll speed is adjusted via the stepless speed controller. The vibratory feeder uses elastic supports for uniform feeding, preventing blockages and ensuring continuous, stable iron removal. Belt tracking issues are corrected by adjusting bearing bolts—loosen the diagonal bearing bolts on the drifting side or tighten the opposite bearing bolts until the belt runs parallel. All product-contact parts are stainless steel or non-magnetic materials to prevent secondary contamination, with wear-resistant treatment available for critical areas.
Conclusion
The high gradient magnetic separator with dry magnetic separator design combines the process reliability of dry separation with the fine iron removal capability of high-gradient fields—delivering a complete solution from conventional to fine dry powder iron removal. From refractories to non-metallic minerals, from abrasives to chemicals, this equipment is helping more operations solve ferrous contamination issues in dry powders. If you are looking for a breakthrough in dry iron removal precision and effectiveness, understanding the high gradient dry magnetic separator may be the key step in your production line upgrade.
