High Gradient Plate Magnetic Separator – Making Separation of Weakly Magnetic Minerals Easier
2026-09-08
In mineral processing and non-metallic mineral purification, customers face a common challenge: weakly magnetic minerals are fine-grained with low specific susceptibility. Conventional magnetic separators either deliver poor separation results or incur high operating costs. In some cases, fine particles cause severe clogging and material carryover, directly impacting production efficiency and product quality. Is there a solution that combines high-gradient, high-intensity field precision separation with economic operation and simple handling? The high gradient magnetic separator with plate magnetic separator design was developed precisely to meet this need.

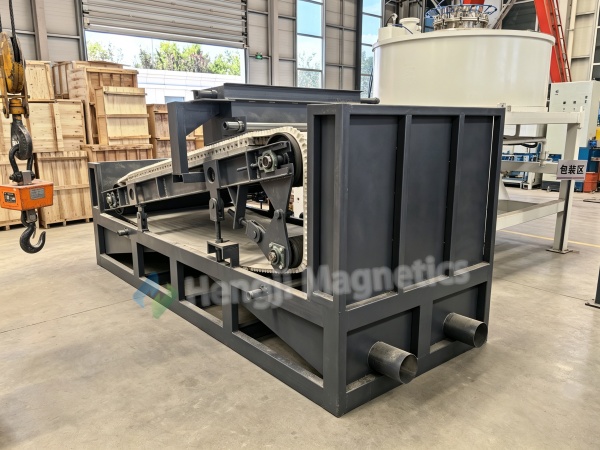

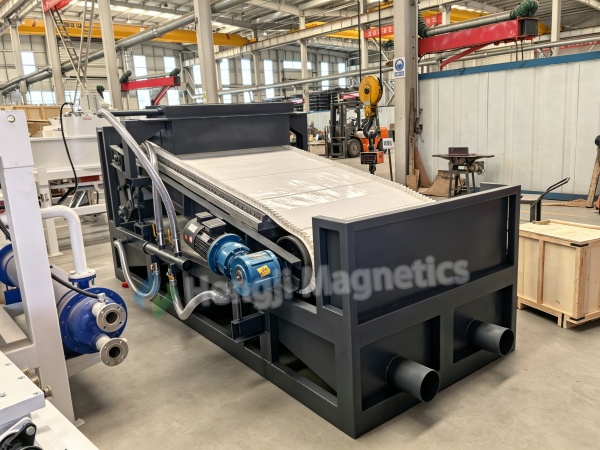

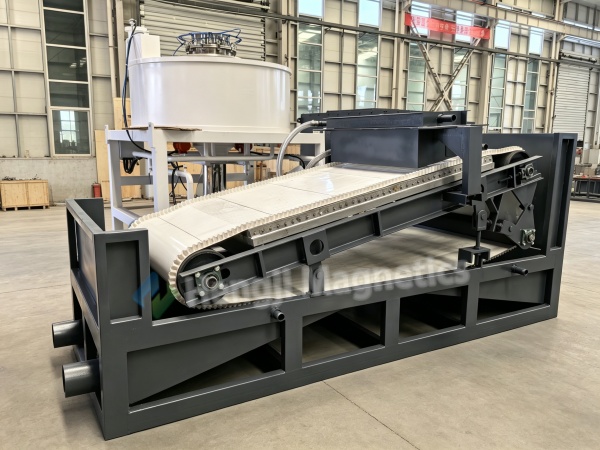

Customer Concerns and How the High Gradient Plate Magnetic Separator Addresses Them
Concern 1: Poor Separation of Weakly Magnetic Minerals – Concentrate Grade Stagnates
Many customers report that when processing weakly magnetic minerals such as hematite, limonite, ilmenite, manganese, and wolframite, conventional equipment lacks sufficient field strength and capture capacity. Valuable magnetic minerals are lost to tailings, resulting in significant resource waste.
The high gradient plate magnetic separator features a computer-optimized magnetic circuit with an opposed-pole arrangement, maximizing capture area and capacity across the working zone. The magnetic core is constructed from high-strength rare earth Neodymium magnets—high purity, high volume—achieving peak field strengths up to 18,000 Gauss. Material passes over the plate through an extended, multi-pass adsorption zone, ensuring even weakly magnetic minerals are firmly captured—delivering significantly improved separation results.
Case Study: A hematite concentrator with feed grade of only 22% struggled to achieve concentrate grades above 45% with conventional equipment. After introducing the high gradient plate magnetic separator and optimizing feed density and flow parameters, concentrate grade stabilized above 58%. Magnetic iron losses in tailings dropped sharply, and resource recovery improved by nearly 20 percentage points. The customer recovered the equipment investment within the first year.
Concern 2: Severe Clogging from Fine Particles – Frequent Shutdowns for Cleaning
Conventional vertical ring high-gradient magnetic separators are prone to media clogging when processing fine particles—cleaning requires significant labor and time, severely disrupting production continuity. This has long been a worldwide technical challenge in the industry.
The plate magnetic separator uses a plate-type design that fundamentally eliminates clogging. Material flows across the plate surface—non-magnetic material flows out by gravity, while magnetic particles are carried by the reverse-running discharge system to the iron outlet. The entire process is continuous and smooth, with no media clogging. The variable-speed drive delivers fully automatic continuous operation and iron discharge, saving labor and ensuring reliable, trouble-free performance.
Case Study: A quartz sand purifier processing -200 mesh fine sand with a vertical ring separator required 2-3 media cleaning shutdowns per shift—severely limiting capacity. After switching to the high gradient plate magnetic separator, the unit ran continuously without clogging, and daily throughput tripled. Product iron content dropped from 180 ppm to below 40 ppm, meeting premium glass raw material specifications—doubling product selling price.
Concern 3: High Equipment Cost – Long Payback Period
High-gradient magnetic separators have traditionally been expensive—vertical ring units often cost millions, putting them out of reach for many small and medium-sized operations.
The high gradient plate magnetic separator costs approximately one-tenth of a conventional vertical ring unit—offering exceptional value. The fully sealed magnetic system provides oxidation protection, ensuring less than 5% magnetic decay over ten years even in harsh environments—no frequent core replacement, minimal maintenance costs. All product-contact parts are stainless steel or non-magnetic materials—eliminating secondary contamination and ensuring product purity.
Concern 4: Limited Material Adaptability – Cannot Handle Diverse Mineral Types
Different customers process different minerals—varying in type, particle size, and density—placing high demands on equipment adaptability.
The high gradient plate magnetic separator is suitable for iron removal from weakly magnetic minerals below 5mm and non-metallic ores—including mica powder, quartz sand, potassium feldspar, nepheline, fluorite, sillimanite, spodumene, kaolin, manganese, magnetite, pyrrhotite, roasted ore, ilmenite, hematite, limonite, siderite, chromite, wolframite, tantalum-niobium ores, and red mud. It is also used for iron removal from coal, non-metallic minerals, and building materials. The unit is available in open or fully sealed configurations to suit different site conditions.
Conclusion
From hematite grade improvement to high-purity quartz purification, the high gradient magnetic separator with plate magnetic separator design—with its ultra-high field strength, clog-free operation, low cost, and broad adaptability—is delivering real value to a growing number of customers. If weak magnetic mineral separation efficiency, equipment clogging, or investment cost is a concern, the high gradient plate magnetic separator may be the solution you are looking for.
