High Intensity Magnetic Plate Separator: Making Weakly Magnetic Mineral Separation Easy

2026-09-11

In non-metallic mineral purification and weakly magnetic mineral separation, customers often face a few unavoidable questions: Can the equipment generate a strong enough magnetic field to capture weakly magnetic particles? Will fine particles cause frequent clogging? Are operating costs high and maintenance complicated? These questions point to one core need—a high intensity magnetic separator with strong field strength, effective separation, and stable operation. The magnetic plate separator was designed to meet this need.

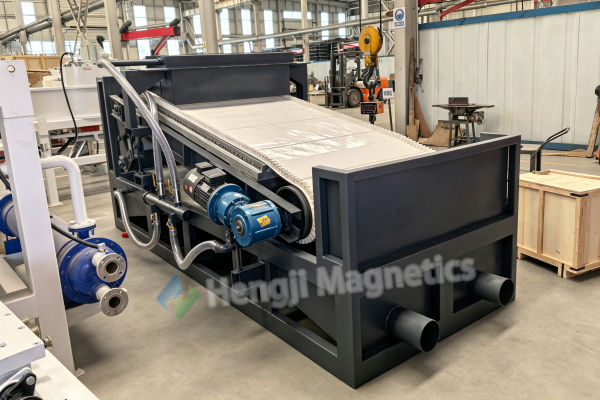

How Does the High Intensity Magnetic Plate Separator Work?

The magnetic plate separator is a high intensity magnetic separator suitable for weakly magnetic mineral separation and non-metallic mineral iron removal. It consists of a support frame, plate magnetic system, feed agitation system, water system, iron discharge system, and adjustment system. Material flow and the discharge system move in opposite directions in a counter-current design, making separation more thorough. Magnetic particles are captured over an extended, multi-pass high-intensity field zone and then carried by the reverse-running discharge system to the iron outlet. Non-magnetic material flows out by gravity.

The high intensity magnetic separator uses a computer-optimized magnetic circuit with an opposed-pole arrangement, maximizing capture area and capacity. The magnetic core is made of high-strength rare earth Neodymium magnets, generating sufficient field strength to capture weakly magnetic impurities. The fully sealed magnetic system resists oxidation and maintains stable magnetic output even in harsh environments. This is what makes the magnetic plate separator so effective for demanding applications.

Magnetic Plate Separator Design for High Intensity Separation

The magnetic plate separator uses a variable-frequency drive motor for continuous automatic operation and iron discharge—saving labor and ensuring reliable performance. The feed system includes an agitation structure to ensure uniform material distribution when entering the magnetic zone, resulting in more stable separation.

The water system uses a single inlet with individual valve control for each water point, making it easy to connect to existing water supply equipment. Valves can be adjusted based on actual water requirements. All product-contact parts are stainless steel or non-magnetic materials, preventing secondary contamination. The high intensity magnetic separator is available in open or fully sealed configurations to suit different site conditions.

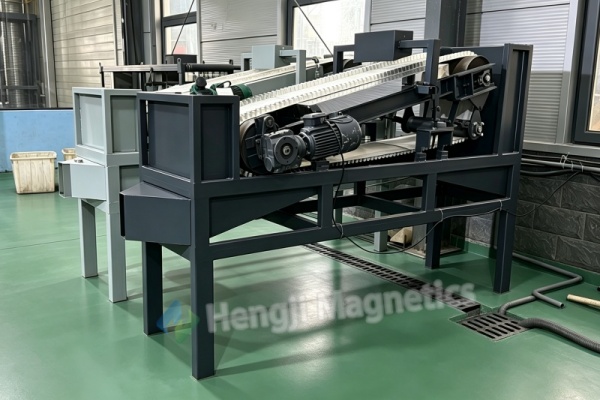

Key Features of the High Intensity Magnetic Plate Separator

Strong magnetic field: High-strength Neodymium magnets and computer-optimized circuit deliver high field strength for capturing weakly magnetic particles.
Counter-current design: Material flow opposite to discharge direction ensures thorough separation and prevents clogging.
Automatic operation: Variable-frequency drive enables continuous automatic operation and iron discharge, reducing labor costs.
Uniform feed: Agitation system ensures even material distribution for stable separation.
Contamination-free: Stainless steel and non-magnetic contact parts prevent secondary contamination.
Flexible installation: Open or fully sealed configurations adapt to different site requirements.

These features make the magnetic plate separator a reliable choice for high intensity magnetic separator applications.

Customer Case: High Intensity Magnetic Plate Separator in Quartz Purification

A quartz sand purification plant in Fujian faced high levels of weakly magnetic impurities in its raw ore. Conventional magnetic separators lacked sufficient field strength, and iron removal failed to meet customer requirements. Product whiteness was substandard, limiting market price.

After introducing the high intensity magnetic separator, material was fed uniformly into the magnetic zone through the agitation system. Under the strong magnetic field, weakly magnetic impurities were effectively captured and continuously discharged. The whiteness and purity of the purified sand improved significantly, meeting downstream customer quality requirements. Annual output value increased notably.

The plant manager noted that the magnetic plate separator operates stably and reliably with almost no additional maintenance—making it a core piece of equipment on the sand purification line.

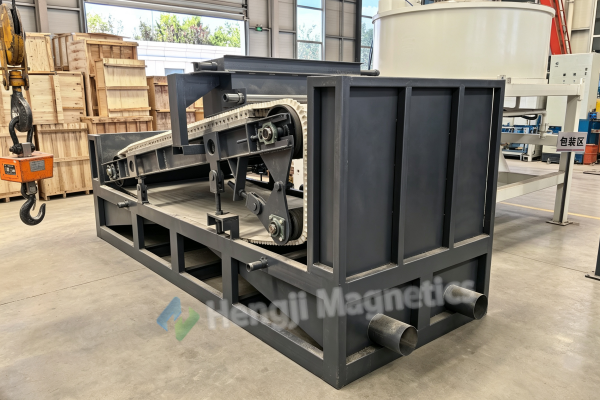

Applications of the Magnetic Plate Separator and High Intensity Magnetic Separator

The magnetic plate separator is mainly used for iron removal and purification of non-metallic minerals such as mica powder, quartz sand, potassium feldspar, nepheline, fluorite, sillimanite, spodumene, and kaolin. It is also used for beneficiation of weakly magnetic metal ores including manganese, weakly magnetic iron ore, pyrrhotite, roasted ore, ilmenite, hematite, limonite, and siderite—as well as iron removal from coal, non-metallic minerals, and building materials.

From non-metallic mineral purification to weakly magnetic mineral separation, the high intensity magnetic separator with magnetic plate separator design delivers reliable magnetic field performance, stable separation, and flexible operation. If product purity or weakly magnetic mineral recovery is a concern, this equipment deserves serious consideration.

Applications of the Magnetic Plate Separator and High Intensity Magnetic Separator

Conclusion

The magnetic plate separator with high intensity magnetic separator technology provides an effective solution for weakly magnetic mineral separation. With its strong magnetic field, counter-current design, automatic operation, and contamination-free construction, it helps operations improve product purity, increase recovery, and reduce maintenance costs. For any plant struggling with weakly magnetic mineral separation, the high intensity magnetic plate separator is a smart investment.
