Inline Magnetic Grate Separator: An Intelligent Solution for Iron Removal and Purification
In the production of powders, slurries, and granular materials, ferrous contamination has long been a persistent headache for manufacturers. Across ceramics, chemicals, food, pharmaceuticals, plastics, rubber, and building materials, even trace amounts of iron impurities can compromise product purity and quality—and may lead to equipment failure, production downtime, and significant economic losses. The challenge is particularly acute in industries where product purity directly determines market value, such as high-end ceramics, battery materials, and specialty chemicals. Is there a solution that delivers efficient iron removal while running continuously online without frequent manual cleaning interruptions? The inline magnetic separator designed as a magnetic grate separators unit provides the answer.
Customer Pain Points and Solutions
Many manufacturers face the following challenges in material iron removal: traditional equipment requires frequent shutdowns for manual cleaning of accumulated iron, severely impacting production efficiency; insufficient magnetic strength leads to incomplete iron removal and substandard product quality; high energy consumption and complex maintenance increase operating costs. These issues are compounded by the fact that many production lines operate 24/7, making any downtime costly. Furthermore, manual cleaning introduces inconsistency—operators may not always clean thoroughly, leading to gradual performance degradation that often goes unnoticed until product quality suffers.
Addressing these pain points, the inline magnetic grate separator uses rare earth Neodymium magnets as the magnetic source, with a full-grid arrangement that fully utilizes the strong magnetic field. The multi-layer design achieves layer-by-layer filtration—delivering thorough iron removal with superior results. The surface material is stainless steel SUS304, offering corrosion resistance and long service life across various operating conditions. For applications requiring even higher corrosion resistance, SUS316L is also available.

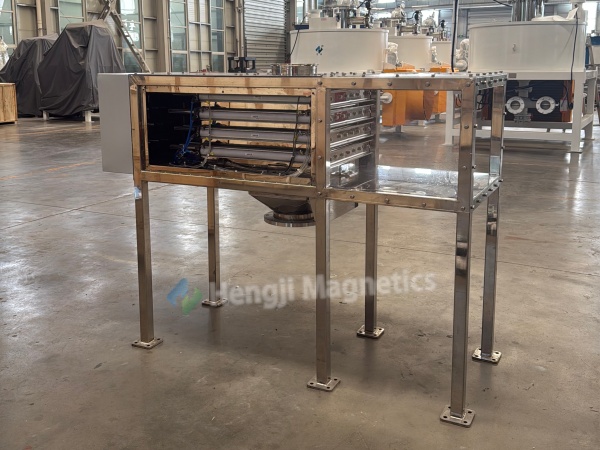

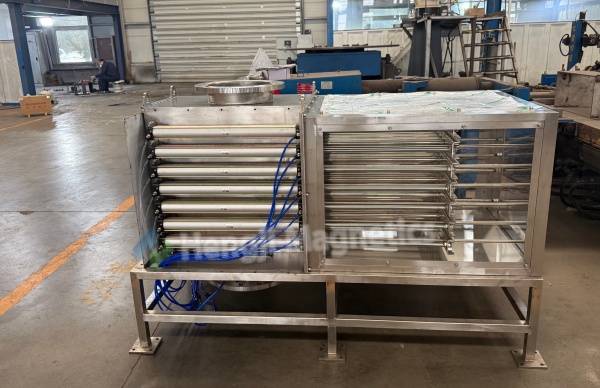

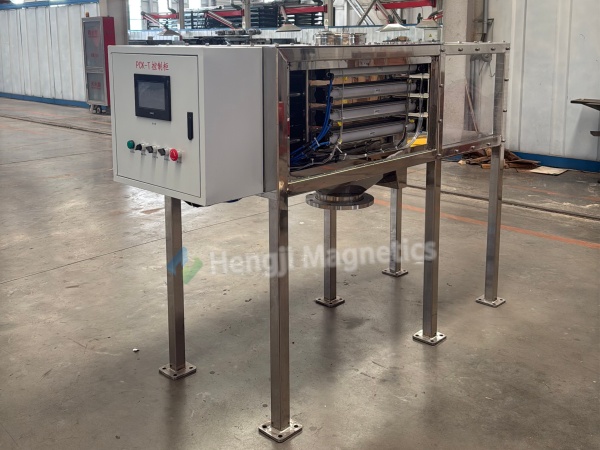

How It Works: Continuous Online Iron Removal Without Shutdown
The working principle of the inline magnetic separator is simple yet efficient: material enters the magnetic rod housing through the feed port and passes through alternately arranged permanent magnetic rods. Magnetic particles are attracted to the rod surfaces by the strong magnetic force, while non-magnetic material passes through and discharges from the outlet. The alternating arrangement of the magnetic rods ensures that there are no weak spots in the magnetic field, meaning every particle that passes through the magnetic grate separators unit is exposed to the full magnetic force.
For iron discharge, a pneumatic cylinder system withdraws the permanent magnetic rods layer by layer, causing the adsorbed ferrous material to automatically detach and fall through the iron discharge port. The discharge timing can be flexibly set via the control panel based on actual iron accumulation, achieving automatic layer-by-layer discharge. This means the magnetic grate separators unit can operate continuously online without manual cleaning—significantly improving production efficiency. The system can be programmed to discharge at regular intervals or triggered by a metal detector, providing flexibility for different production scenarios.
Customer Case Study: Chemical Plant Upgrade
A chemical manufacturer had long struggled with excessive iron contamination in its powder products, resulting in substandard product quality and frequent customer complaints. The conventional iron removal equipment used previously suffered from rapid magnetic decay and required manual cleaning every two hours—severely limiting production capacity. The company tried multiple solutions, but none delivered satisfactory results. The manual cleaning process also introduced safety risks, as operators had to handle sharp metal particles and work near moving equipment.
After introducing the inline magnetic grate separator, the situation changed fundamentally. Once integrated into the production line, powder material entered the magnetic rod housing uniformly. As it passed through the multi-layer permanent magnetic rods, iron impurities were effectively captured. Iron discharge was automatically controlled by the pneumatic system at scheduled intervals—requiring no manual intervention. The equipment ran continuously and stably, significantly improving iron removal effectiveness and product quality. More importantly, the production line no longer required frequent shutdowns for cleaning, freeing up capacity and substantially reducing overall operating costs. The company reported a 40% reduction in downtime and a 25% improvement in product quality within the first three months of operation.

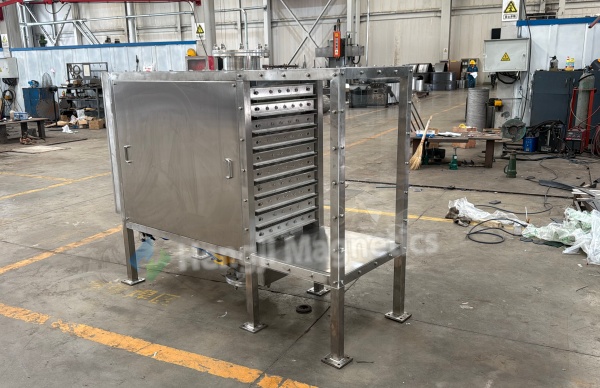

Performance Features: Strong Magnetism, Energy Efficiency, Maintenance-Free
The inline magnetic separator offers multiple outstanding performance features: rare earth Neodymium magnets as the magnetic source provide long service life and persistent magnetic strength without decay; no energy consumption, no pollution, simple structure, and easy operation. The full-grid arrangement ensures full utilization of the strong magnetic field, while the multi-layer design delivers thorough filtration. The magnetic grate separators unit is suitable for both indoor and outdoor use, with a wide temperature range and adaptability to altitudes up to 3000 meters.
For daily maintenance, simply clean accumulated iron from the magnetic system periodically to prevent magnetic loss, and clear dust from the pneumatic cylinders and control system. The compact design requires minimal maintenance and delivers stable, reliable operation. The magnetic rods themselves are sealed within stainless steel tubes, preventing direct contact with the material and ensuring hygienic operation—a critical requirement in food and pharmaceutical applications.
Wide Application Range
The inline magnetic grate separator is widely used in food, plastics, chemicals, rubber, pharmaceuticals, ceramics, wood, packaging, non-metallic minerals, refractories, and other industries—for removing ferrous contaminants from powders, granules, and liquid slurries. Whether for raw material purification in fine chemicals or metal contaminant removal in food processing, the inline magnetic separator provides reliable iron removal protection, helping manufacturers improve product quality and reduce production costs. The equipment can be customized with different rod configurations and housing sizes to match specific material characteristics and flow rates.

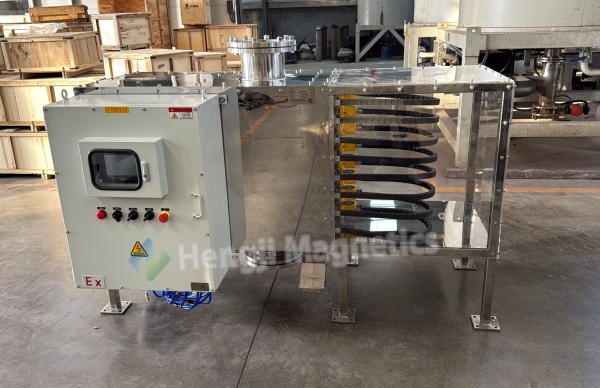

Why Choose the Inline Magnetic Grate Separator?
The inline magnetic separator with magnetic grate separators design addresses the key challenges of modern production: it eliminates downtime for cleaning, ensures consistent iron removal performance, and operates with minimal maintenance. For manufacturers seeking to improve product quality, reduce operating costs, and increase production efficiency, this equipment represents a smart, long-term investment. Its ability to run continuously without manual intervention makes it particularly valuable for high-volume production lines where any interruption translates directly into lost revenue.
