Induced Roll Magnetic Separator: The Powerful Tool for Magnetic Particle Separation in Weakly Magnetic Minerals

2026-06-27

In non-metallic mineral processing, chemical, and building materials industries, weakly magnetic impurities—such as hematite, limonite, biotite, and chromite—are often the main culprits affecting product whiteness, grade, and added value. These minerals have low magnetic susceptibility, making them difficult to capture with conventional permanent drum separators or magnetic bar boxes. The induced roll magnetic separator addresses this challenge with its unique high-gradient magnetic field design, offering a reliable solution for efficient purification of weakly magnetic minerals through precise magnetic particle separation.

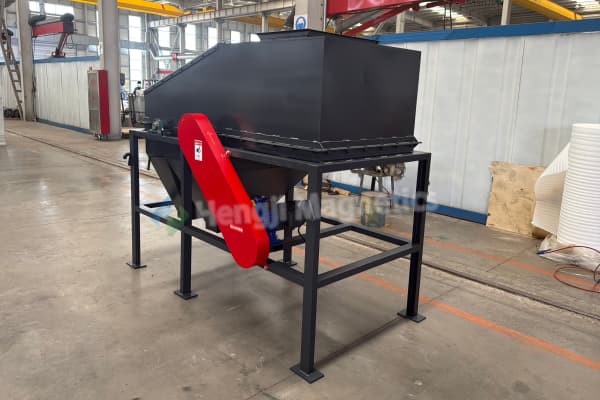

How Does an Induced Roll Magnetic Separator Achieve High-Gradient Magnetic Particle Separation?

The core advantage of the induced roll magnetic separator lies in its special induced roll structure. The roll is made of highly permeable stainless steel or pure iron, with the surface machined into teeth or grooves. As the roll rotates in the magnetic field, the tooth tips generate extremely high magnetic field gradients and intensities (exceeding 18,000 Gauss), creating a "sharp tip effect." When material is fed in a thin, uniform layer over the roll surface, weakly magnetic particles are attracted to the teeth by the strong magnetic force. Non-magnetic minerals are unaffected and follow different trajectories under gravity and centrifugal force, achieving precise magnetic particle separation. The captured magnetic particles are then carried to the non-magnetic zone, where they are discharged by brush rolls or high-pressure water into the concentrate bin.

Key Customer Concerns About the Induced Roll Magnetic Separator

Separation Accuracy and Efficiency

Iron impurities in many materials are weakly magnetic and fine-grained, making them difficult to remove with conventional equipment. The induced roll magnetic separator generates extremely high magnetic gradients at the roll tooth tips, sufficient to capture micron-sized weakly magnetic particles. With a stepless speed control system (typically 40-200 rpm), operators can adjust roll speed to regulate material retention time in the magnetic field. By fine-tuning speed and feed rate based on specific mineral susceptibility, they can achieve optimal magnetic particle separation parameters. For typical weakly magnetic minerals like manganese ore, hematite, and chromite, this equipment can often increase grade severalfold.

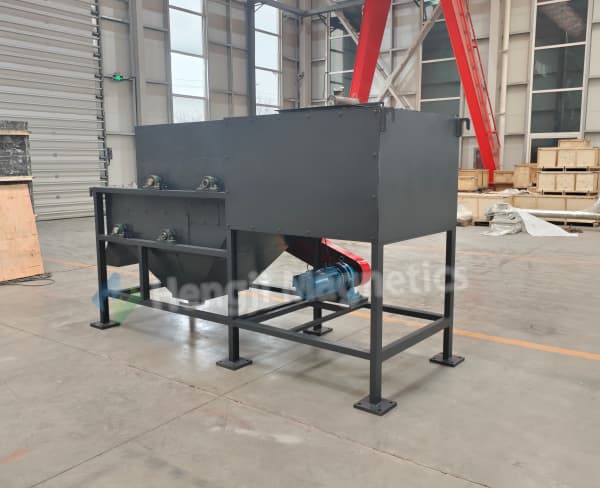

Key Customer Concerns About the Induced Roll Magnetic Separator1

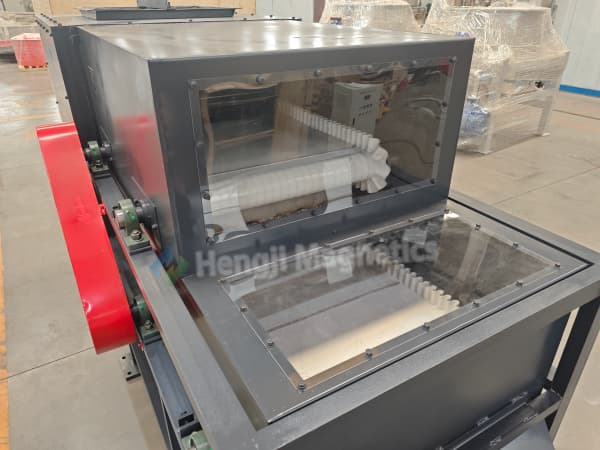

Key Customer Concerns About the Induced Roll Magnetic Separator2

Operational Stability and Material Adaptability

The roll of the induced roll magnetic separator is made of wear-resistant stainless steel with a specially hardened surface, resistant to abrasion and deformation. The drive system uses a cycloidal gearmotor or variable-frequency motor for smooth, reliable operation. For different material characteristics, the equipment can be customized: brush rolls can be added for high-moisture materials to prevent sticking; multi-layer or multi-roll configurations can be designed for high-iron-content, high-throughput applications to ensure thorough magnetic particle separation. The feed system uses vibratory or belt feeding to ensure a thin, uniform layer entering the separation zone, improving efficiency and precision.

Maintenance and Cleaning

Traditional high-gradient magnetic separators often suffer from matrix clogging and difficult cleaning. The induced roll magnetic separator has a compact, open structure that resists clogging. Magnetic particles captured on the roll teeth are naturally released in the non-magnetic zone or brushed off by the roll brush, making operation simple. The equipment has few wear parts—mainly bearings requiring periodic lubrication and a gearbox requiring regular oil changes—resulting in low daily maintenance. Manufacturers typically provide detailed wear parts lists and maintenance manuals for long-term stable operation.

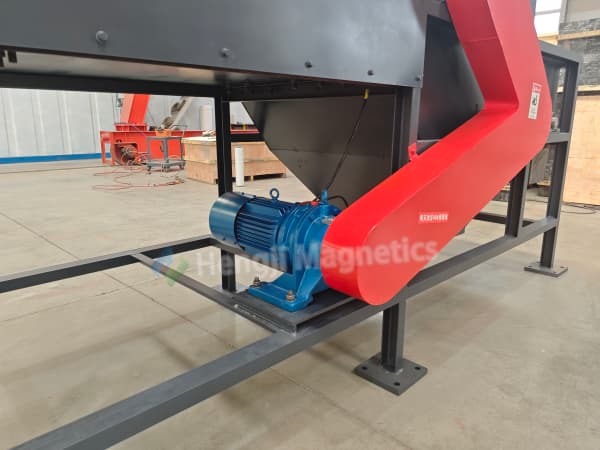

Key Customer Concerns About the Induced Roll Magnetic Separator3

Applications of the Induced Roll Magnetic Separator

The induced roll magnetic separator excels in the following areas:

Non-metallic minerals: Removing weakly magnetic impurities from quartz, feldspar, kaolin, sillimanite, and andalusite, significantly improving whiteness and grade.
Weakly magnetic iron ores: Pre-concentration and roughing of manganese ore, hematite, and limonite, discarding tailings early and reducing downstream grinding costs.
Chemical raw materials: Iron removal from barite, fluorite, and other chemical feedstocks.
Recycling: Recovering valuable magnetic metals from spent catalysts and smelting slags.

In these applications, the induced roll magnetic separator effectively processes materials from coarse particles (below 5mm) to fine powders.

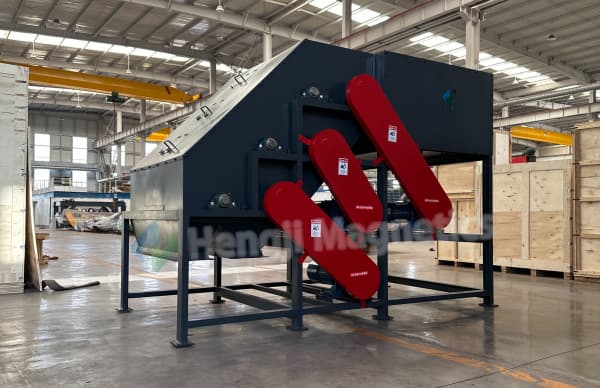

How to Select the Right Induced Roll Magnetic Separator

Reputable manufacturers offer material testing services. Customers can send samples for laboratory trials using an actual induced roll magnetic separator. Based on test results, technicians provide detailed selection recommendations and process flow configurations. This "test before you buy" approach allows customers to verify the equipment's performance on their specific material before making a purchase decision. For companies committed to improving product quality and accessing premium markets, investing in a reliable induced roll magnetic separator is a critical step toward mastering magnetic particle separation technology for weakly magnetic minerals.

Conclusion

The induced roll magnetic separator is an indispensable tool for magnetic particle separation in weakly magnetic mineral processing. With its high-gradient magnetic field, adjustable speed control, robust construction, and low maintenance requirements, it delivers efficient purification for non-metallic minerals, iron ores, and chemical materials. For processors seeking to upgrade product quality and reduce operating costs, this technology offers a proven, reliable solution.
