Perm Rare Earth Roll Magnetic Separator: A Reliable Solution for Dry Powder Iron Removal

2026-09-02

In abrasives, refractories, non-metallic minerals, carbon black, grain, feed, and chemical industries, iron contamination in dry powders is a persistent headache. Iron filings and particles not only reduce product purity but also accelerate downstream equipment wear, cause quality inconsistency, and lead to customer complaints. Many companies have tried various iron removal methods—either separation effectiveness falls short, or frequent manual cleaning severely impacts production efficiency.

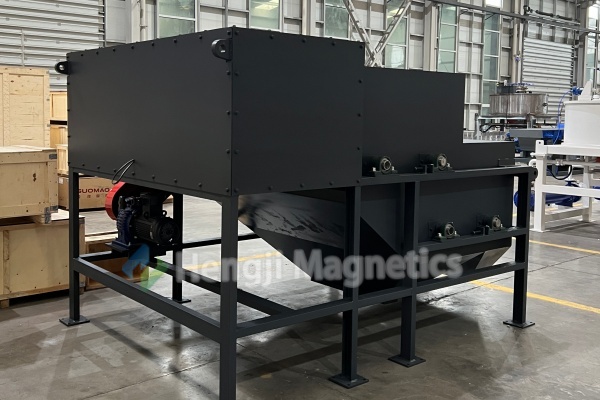

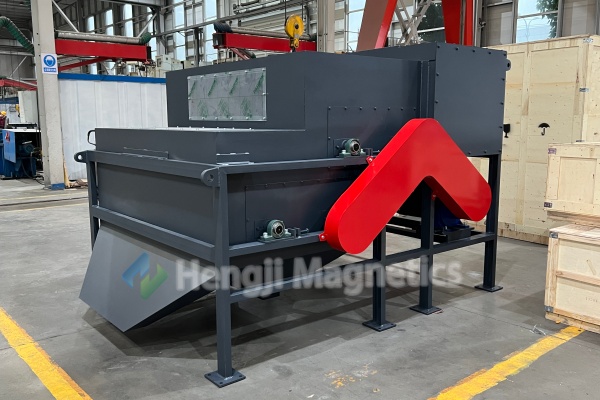

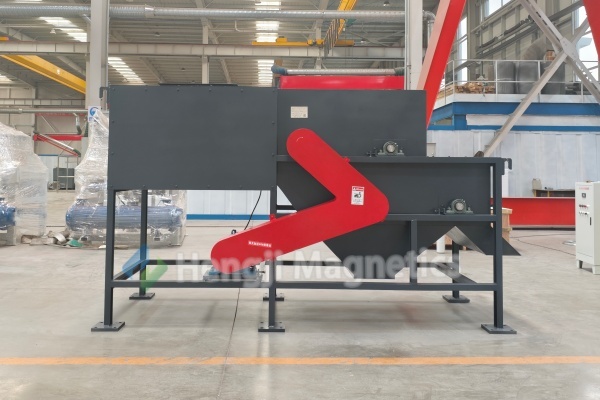

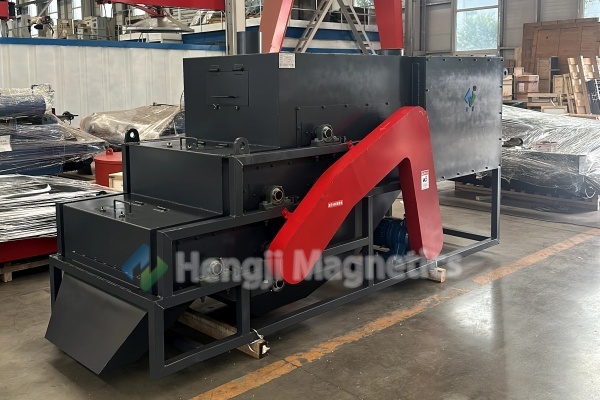

The perm roll magnetic separator with rare earth roll magnetic separator technology was developed specifically to address these challenges. By integrating high-performance permanent magnets with rare earth Neodymium materials, its unique magnetic circuit design delivers efficient, continuous, automatic separation of magnetic contaminants from dry powders.

Why Dry Powder Iron Removal Matters

In dry powder processing, iron contamination is often invisible but highly damaging. Even trace amounts of ferrous particles can cause discoloration, reduce product strength, and compromise performance characteristics in final applications. For industries like refractories and abrasives, iron impurities directly affect product quality and service life. In non-metallic minerals, iron contamination lowers whiteness and purity, reducing market value. In food and feed applications, ferrous contamination poses safety risks. The need for reliable, continuous iron removal is universal across these diverse industries.

Traditional methods—manual sorting, magnetic rods, or basic drum separators—often fall short. Manual cleaning is labor-intensive and inconsistent. Magnetic rods lose effectiveness as they accumulate iron. Standard drum separators lack the field strength and gradient to capture fine ferrous particles. This is where the perm rare earth roll magnetic separator offers a distinct advantage.

One Machine, Two Core Concerns Addressed

Concern 1: Does the Perm Rare Earth Roll Magnetic Separator Meet Iron Removal Requirements?

Many customers question whether the equipment can deliver sufficient separation efficiency. The rare earth roll magnetic separator features a computer-optimized magnetic circuit using high-performance Neodymium magnets as the magnetic source. The roll surface delivers strong field strength and high lifting force—effectively capturing ferrous impurities in powders.

Material is fed uniformly onto the conveyor belt via a vibratory feeder. When it reaches the front magnetic roll zone, ferrous particles are firmly attracted and carried as the roll rotates to the lower rear section. A discharge scraper pushes them out of the magnetic field—ferrous particles lose magnetic attraction and fall by gravity through the iron discharge outlet, while non-magnetic material continues by inertia to the next section, achieving effective separation of material from iron.

The vibratory feeder uses elastic supports to ensure consistent feed, preventing material buildup and ensuring that every particle passes through the magnetic field. The roll speed is adjustable, allowing operators to fine-tune the separation process for different material characteristics. This flexibility makes the perm roll magnetic separator adaptable to a wide range of dry powder applications.

Case Study: A refractory material producer experienced black spots in finished products due to high iron content in raw materials, causing a decline in product qualification rates. After introducing the perm roll magnetic separator, iron impurities were continuously and automatically removed, product qualification rates recovered significantly, and a long-standing quality issue was resolved. The plant manager noted that the equipment paid for itself within the first year of operation through reduced rejects and lower maintenance costs.

Concern 2: Does the Perm Rare Earth Roll Magnetic Separator Require Frequent Maintenance? Will It Increase Labor Costs?

Traditional iron removal methods often require manual cleaning of accumulated ferrous material—time-consuming and labor-intensive. The rare earth roll magnetic separator is designed with practical user needs in mind. Continuous automatic operation requires no dedicated attendant once started—iron impurities are automatically separated and discharged.

The magnetic roll features a fully sealed design, with the magnetic assembly completely isolated from material—minimizing wear and delivering maintenance-free operation. The vibratory feeder uses elastic supports for long service life and effective resonance avoidance. The discharge scraper is made of wear-resistant material to withstand continuous friction. Overall, the perm rare earth roll magnetic separator requires minimal routine maintenance—just periodic cleaning of the surrounding area and occasional bearing lubrication.

Simple Installation, Flexible Adaptation

The perm roll magnetic separator is equally simple to install. The unit is mounted directly on a level floor and connected to power—ready for operation. Feed gate opening and roll speed are adjustable based on hourly throughput, requiring minimal operator training. Belt tracking issues are corrected without stopping production, using diagonal bearing bolts—adjustments made online without affecting production schedules.

The compact design occupies minimal floor space, making it suitable for both new installations and retrofits in existing production lines. External dimensions can be customized to fit specific site requirements.

Wide Application Range

The rare earth roll magnetic separator handles a broad material temperature range, meeting different industry requirements. It is widely used in abrasives, refractories, non-metallic mineral processing, carbon black, grain, feed, and chemicals. For dry powder production lines with material temperatures up to 125°C requiring continuous automatic iron removal, the equipment delivers stable separation performance.

With extensive experience in developing and manufacturing perm roll magnetic separator and rare earth roll magnetic separator technology, Hengji Magnetics has earned recognition from customers across multiple industries for its sound magnetic circuit design, stable operation, and strong reputation. For companies seeking a solution to dry powder iron removal challenges, the perm rare earth roll magnetic separator is a practical choice worth serious consideration.
